W15FA3S-ELA4
Multitouch-Screen, Projected-Capacitive (PCAP)

HMI-Panel-PC mit Multitouch für den professionellen Einsatz
Panel-Industrie-PC in robuster Stahlblechausführung
Stabile Aluminium-Frontplatte (IP65-geschützt)
Ebene PCAP-Glasfront ohne Schmutzkanten
Ausgelegt für industrielle Anwendungen im Dauerbetrieb
Panelmount-Einbau mit rückseitigen Halteklammern
Langzeitverfügbarkeit

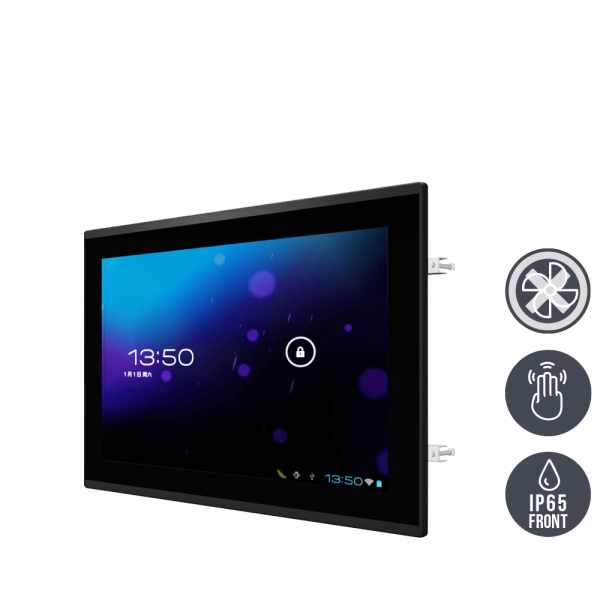

01-Front-right-W15FA3S-ELA4 / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
01-Front-right-W15FA3S-ELA4 / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Numero Ordine: 23152285
Prezzo su richiesta

Prezzi più IVA più spese di spedizione

Consegniamo / vendiamo esclusivamente a clienti / imprenditori commerciali.

Tempi di consegna: su richiesta


SPEZIFIKATIONEN
Numero Ordine: 23152285
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: E-Serie HMI
Manufacturer item number: W15FA3S-ELA4
mechanics: Panel Mount
dimensions width: 38,76
dimensions height: 25,77
dimensions depth: 5,25
Material housing: Stahlblech / steel sheet
Material Front : Aluminium / aluminum
protection front: IP65
protection device: IP20
colour: schwarz / black
controls: 2 Keys: Power, Reset, Status-LEDs
VESA-Mounting Interface: VESA 75 x 75 mm
mounting: Einbau von vorne / front installation
cooling: lüfterlos / fanless
Display-diagonal (inch): 15,6
aspect ratio: 16:9
resolution: 1920 x 1080
brightness: 300 cd/m²
contrast: 800:1
Display-Technologie: LCD, LED Backlight
Touch-Screen or glass: Projected Capactive / Multi-Touch
Touch Interface: RS-232
Manufacturer controller: P-CAP Touchcontroller
voltage input DC: 12 -24 V/DC
voltage input AC: 100 - 240 V/AC
external power supply: 12 V/DC, 100 - 240 V/AC, IP65
input: 15 Watt
USB: 1 x USB 2.0, 1 x USB OTG
serial: 1 x RS-485
LAN: 1x RJ45 - 10/100/1000 Mbps
Mainboard form factor: i. MX6
CPU Typ: A9
CPU Model: Cortex A9
CPU 64bit: Nein
CPU speed: 1,0 GHz
CPU cores: 2
CPU socket: CPU on Board
RAM size (MB): 1024
RAM max. size (MB): 8192
RAM Number of benches: 1
RAM Typ: LPDDR3
Grafik Controller: Graphics in CPU
connections SATA: 1
CPU class: ARM Cortex
Ethernet connections: 1 x RJ-45
Ethernet data transfer: 1 x Gigabit-LAN
Ethernet Controller : Intel I211IT
operating system: Android 6.0
operating-system language version: deutsch / english / italian
operating-system support: Ubuntu 16.04
operating temperatur min.: -10°C
operating temperatur max.: 50°C
warranty: 24 Monate / 24 months
