WM 10-V-CH-MTU
Multitouch-Screen, Projected-Capacitive (PCAP)

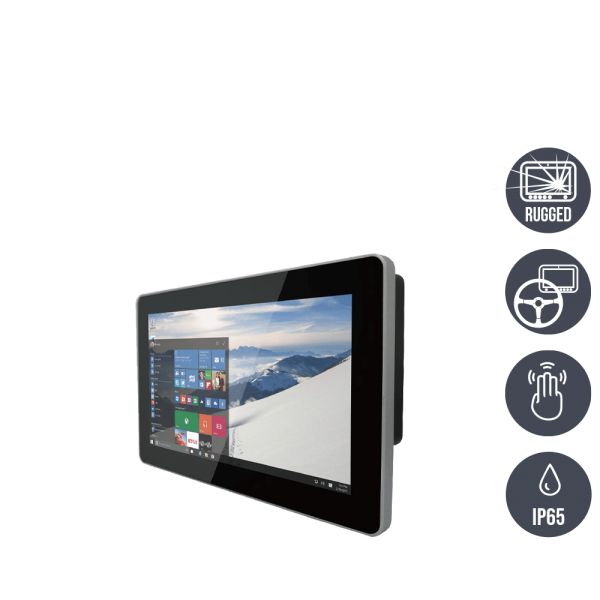

Rugged industrial LCD for stationary and vehicle-mounted use Industrial monitor in sturdy steel sheet housing Protection class IP65 all around incl. Interfaces Shock and vibration resistant acc. MIL-STD-810F/G Flat PCAP glass front without dirt-collecting edges Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Long-term availability

01-Rugged-Industrial-Display-PC-W10L100-GSH1.png / TL Produkt-Welten / Industriemonitor / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
01-Rugged-Industrial-Display-PC-W10L100-GSH1.png / TL Produkt-Welten / Industriemonitor / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Numero Ordine: 51000331
prezzo lordo: € 0,00
Prezzo su richiesta

Prezzi più IVA più spese di spedizione

Tempi di consegna: su richiesta

HIGHLIGHTS
  • VESA-Montageschnittstelle
  • P-CAP Touch-Screen
  • Langzeitverfügbarkeit
Scarica scheda tecnica in PDF

SPEZIFIKATIONEN
Numero Ordine: 51000331
Manufacturer: WM
Manufacturer: Winmate
series name: GS-Serie
Manufacturer item number: W10L100-GSH1
mechanics: Chassis (VESA-Mounting)
dimensions width: 26,33
dimensions height: 17,2
dimensions depth: 4,02
protection front: IP65
protection device: IP65
colour: schwarz, grau / black, grey
controls: 5 Keys: -, +, Power, Esc, Enter
VESA-Mounting Interface: VESA 75 x 75 mm
mounting: Tragarm-, Standfuß-, Wandmontage / Suppo
Display-diagonal (inch): 10,1
aspect ratio: 16:9
resolution: 1024 x 600
brightness: 420 cd/m²
contrast: 800:1
Display-Technology: LCD, LED Backlight
Touch-Screen or glass: Projected Capactive / Multi-Touch
Touch Interface: USB
Manufacturer controller: P-CAP Touchcontroller
voltage input DC: 9-36 V/DC (M12 type)
input: 15 Watt
VGA: 1 x 12-pin (M12 type)
USB: 1 x USB 2.0 (M12 type)
operating temperatur min.: -15°C
operating temperatur max.: 55°C
warranty: 24 Monate / 24 months
IstPKArtikel: nein
