FM07
Computer veicolare

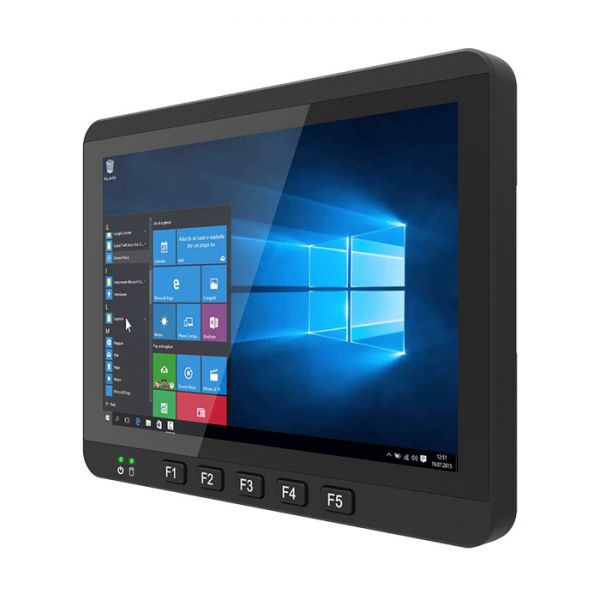

Lüfterloser Vehicle-Mounted Computer FM07 inkl. 5 programmierbare Funktionstasten
Schutz: IP65 (Wasser u. Schmutz), MIL-STD-810G (Schock u. Vibration)
Gehäusematerial: Magnesium/Aluminium
Maße PC: 188.75 x 144.75 x 39.5 mm,

LCD:
7"  TFT LCD Bildschirm, Helligkeit  max. 1000 cd/m²,
Auflösung 1024 x 600 Pixel.

PC:
All-In-One Mainboard für Intel® Celeron N3350 (Apollo Lake),
W-LAN 802.11 a/b/g/n/ac, Bluetooth, GPS,
Vorhandene Schnittstellen PC:
1x SIM Card Slot, 1x COM, 2x USB fro DB9, CANBus,
1x LAN Port LAN 10/100/100 Mbps (M12 type), 1x speaker,
Eingangsspannung: 9-36 Volt

KONFIGURATION:
CPU: Intel Celeron N3350
Arbeitsspeicher: 2 GB DDR3L-SODIMM
SSD: 64 GB, mSATA
Touchscreen: Projected capacitive
Betriebssystem: Windows 10 IoT Enterprise LTSB 2019

Typ: TPC FM07
CE/FCC-Konform
Betriebstemperatur: -20 °C bis 60 °C
Ursprungsland: Taiwan

01-Front-right-FM07 / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
01-Front-right-FM07 / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
Functions-front-FM07-01 / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
Functions-front-FM07-01 / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
Functions-front-FM07-02 / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
Functions-front-FM07-02 / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
Newsletter / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
Newsletter / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
01-Front-FM07 / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
01-Front-FM07 / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
FM07-Back / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
FM07-Back / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
FM07-Bottom-Side / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
FM07-Bottom-Side / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
FM07-Left-Side / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
FM07-Left-Side / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
FM07-Side / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
FM07-Side / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
FM07-Top-Side / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
FM07-Top-Side / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
Numero Ordine: 25070001
prezzo lordo: € 0,00
Prezzo su richiesta

Prezzi più IVA più spese di spedizione

Tempi di consegna: su richiesta

HIGHLIGHTS
  • Für Fahrzeug- und Gabelstapler-Einbau
  • Widerstandsfähige Gehäuse aus Magnesium-Legierung
  • IP65 wasser- und staubdicht
  • Schock- und Vibrations-Resistenz gemäß MIL-STD-810G
Scarica scheda tecnica in PDF

SPEZIFIKATIONEN
Numero Ordine: 25070001
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: Vehicle Mounted Computer
Manufacturer item number: FM07
mechanics: Rugged Tablet PC
dimensions width: 18,9
dimensions height: 14,5
dimensions depth: 4
weight: 1
Material housing: Aluminium / aluminium
colour: Schwarz / black
VESA-Mounting Interface: VESA 75 x 75
cooling: lüfterlos / fanless
Display-diagonal (inch): 7
aspect ratio: 16:9
resolution: 1024 x 600
brightness: 1000 cd/m²
contrast: 700:1
Display-Technology: LCD, LED Backlight
Touch-Screen : Projected Capactive / Multi-Touch
usability: Finger/Stift / finger/pen
CPU Typ: Intel Celeron
CPU Model: N3350
CPU speed: 1,1 GHz
CPU cores: 2
RAM size (MB): 2048
RAM max. Größe (MB: 8192
RAM Typ: SO-DDR3L
RAM speed: 1600
SSD design: M.2
SSD capacity: 64
SSD number: 1
SSD number max.: 1
RAID-System: Nein / no
WLAN: Ja / yes
WLAN-Standard: IEEE 802.11 a/b/g/n/ac
Bluetooth: Ja / yes
WWAN: Optional / optional
Ethernet_connections: 1x RJ-45
Ethernet data transfer: 1 x Gigabit-LAN
Camera front: Nein / no
Camera rear: Nein / no
Barcode: Nein / no
RFID: Nein / no
Finger Print: Nein / no
USB: 2x 3.0 USB (Type A)
serial: 1x RS-232
LAN: 1x RJ45 - 10/100/1000 Mbps
Card Slot: 1x SD Slot
Audio: Canbus
Power: 1x 9-36 V/DC, DC plug
controls: 7 Keys: Power, 6x Function
operating system: Windows 10 IoT Enterprise
operating system optional: Ubuntu
operating temperatur min.: -20°C
operating temperatur max.: 60°C
Shock: MIL-STD-810G Method 516.6 Procedure I
Vibration: MIL-STD-810G Method 514.6 Procedure I
voltage input DC: 12-19 V/DC
voltage input AC: 100 - 240 V/AC
external power supply: 19 V/DC, 100 - 240 V/AC, DC plug
battery Hot-Swap: Nein / no
