WM 17-IB32-ES-GS
no Touch-Screen
Robust industrial Panel PC made of brushed stainless steel Protection class IP65 all around incl. interfaces Easy to clean and corrosion resistant Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Perfect for food, chemical, pharmaceutical industry, medical technology, process engineering, plant construction etc. Long-term availability

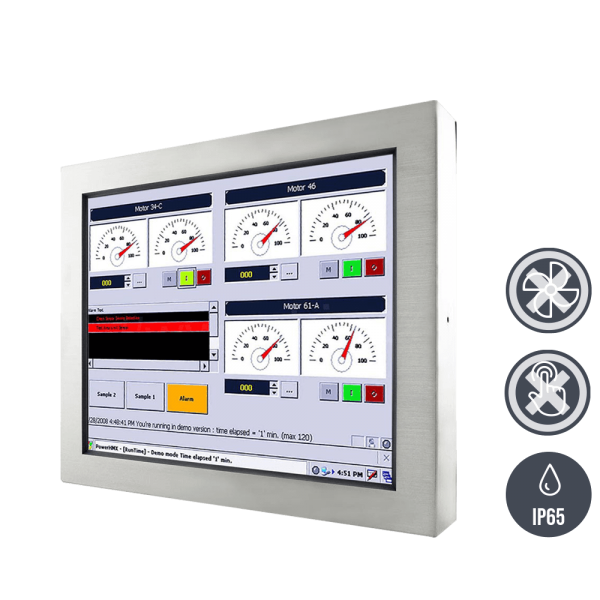

Front-right-WM 19-IB3S-ES-GS.png / TL Produkt-Welten / Panel-PC / Chassis Edelstahl (VESA-Mounting) /ohne Touch-Screen
12-Panel-PC-IP65-rear / TL Produkt-Welten / Panel-PC / Chassis Edelstahl (VESA-Mounting) / ohne Touch-Screen
13-IP65-Edelstahl-Interfaces / TL Produkt-Welten / Panel-PC / Chassis Edelstahl (VESA-Mounting) / ohne Touch-Screen
14-Panel-PC-IP65-Edelstahl / TL Produkt-Welten / Panel-PC / Chassis Edelstahl (VESA-Mounting) / ohne Touch-Screen
Numero Ordine:
23191584
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 23191584 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | ES-Serie |
| Manufacturer item number: | R19IB3S-65M1 |
| mechanics: | Chassis Edelstahl / stainless steel (VESA-Mounting) |
| dimensions width: | 46,8 |
| dimensions height: | 39,5 |
| dimensions depth: | 6,3 |
| Material housing: | Edelstahl / stainless steel |
| Material Front : | Edelstahl / stainless steel |
| protection front: | IP65 |
| protection device: | IP65 |
| colour: | Edelstahl gebürstet / brushed stainless steel |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | VESA 100 x 100 mm |
| mounting: | Tragarm-, Standfuß-, Wandmontage / Support arm, stand, wall mount |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 19 |
| aspect ratio: | 4:3 |
| resolution: | 1280 x 1024 |
| brightness: | 250 cd/m² |
| contrast: | 1000:1 |
| Display-Technologie: | LCD, LED Backlight |
| Touch-Screen or glass: | Schutzglas / protective glass |
| Manufacturer controller: | Premier |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, IP65 |
| input: | 45 Watt |
| VGA: | 1 x 15-pin D-sub |
| USB: | 6 x USB 2.0 (4 x USB internal) |
| serial: | 4 x RS-232 (3x Internal) |
| LAN: | 2x RJ45 - 10/100/1000 Mbps |
| Mainboard form factor: | 3,5" |
| chipset: | Intel System on chip |
| CPU Typ: | Celeron Bay Trail-M |
| CPU Model: | N2930 |
| CPU 64bit: | Ja |
| CPU speed: | 1,8 GHz |
| CPU cores: | 4 |
| CPU socket: | CPU Onboard |
| RAM size (MB): | 4096 |
| RAM max. size (MB): | 8192 |
| RAM Number of benches: | 1 |
| RAM Typ: | SO-DDR3 |
| RAM speed: | 1600 |
| Grafik Controller: | Intel HD Graphics Z3700 series |
| Audio Controller: | Realtek ALC886 HD Codec |
| safety: | TPM 1.2 |
| connections SATA: | 1 |
| SSD design: | 2.5" |
| SSD capacity (GB): | 128 |
| Ethernet connections: | 1 x RJ-45 |
| Ethernet data transfer: | 2 x Gigabit-LAN |
| Ethernet Controller : | Intel I210-AT |
| Betriebssystem: | Optional |
| operating-system support: | Windows 7 / 8.1 / 10 IoT |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 45°C |
| warranty: | 24 Monate / 24 months |
Weiterführende Links zu "WM 17-IB32-ES-GS"
Verfügbare Downloads:
- CE_Panel-PC ES-Serie Gebrauchsanleitung 20190130
- CE Konformitätserklärung DoC Panel-PC WM 19-IB32-ES-x_20190130
- Drawing Panel-PC WM 19-IB32-ES 201007
