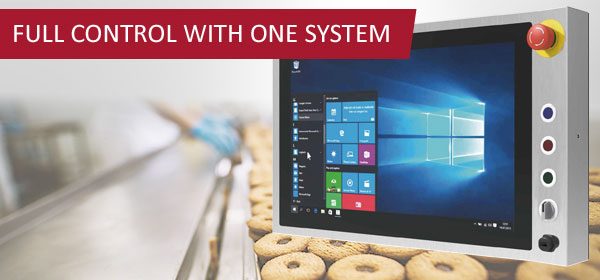

Full control with one system

Stainless steel Panel PCs for food and chemical industry

23.11.2021,

with the Stainless B-Serie, we have added more operating comfort to our stainless steel Panel PCs, which have been well proven for many years:

Emergency stop and flat pushbuttons integrated in the robust and corrosion-protected stainless steel housing bring control and signalling directly into the working area. Unnecessary handling or navigating through HMI screens is no longer necessary – work processes are improved and therefore safer.

Your installation costs and wiring times are significantly reduced, because the connection to the systems to be controlled is very simple. The signal lines are IP65-protected at the rear, suitable cables are supplied.

21.5 inch PCAP touch screen with completely flat front surface without dirty edges
The 21.5" PCAP Multi-Touch screen with a completely flat front surface without any dirt edges is ideal for workplaces that require high hygiene standards and are cleaned frequently.
Stainless steel Panel PC and monitor in 10.1 and 19 inch
Interesting alternatives in different display sizes as well as a purely passive stainless steel monitor offer you more flexibility e.g. when space is limited.
IP65-protected connections on the rear of the stainless steel industrial PC
All interfaces are implemented via IP65-protected M12 connections – also for the emergency stop and the three front buttons. Matching cables are included in the scope of delivery.
Rotary switch at the front of the stainless steel Panel PC
The easy-grip rotary switch allows quick and user-friendly change between different touch modes for hand, rain and glove operation. (optionally other assignment possible)
emergency stop and push buttons integrated in panel pc front
Emergency stop and flat pushbuttons bring control and signalling directly into the working area.
clever accessory: the stainless yoke mount stand
Clever accessory: the stainless steel tiltable yoke mount stand for stable mounting.
Display:   15" / 19" / 21,5"
projected capacitive multi-touch screen
CPU:   Celeron N2930 (4 × 1,83 GHz)
OS:   Windows 10 IoT Enterprise
Memory:   4 GB / 8 GB DDR3
Storage:   from 64 GB SSD
WLAN:   optional
Interfaces:   2 × USB, 1 × COM, 1 × RJ45-Ethernet,
CN1 + CN2 for front button control
Protection:   Full IP65
Material:   Stainless steel brush-finished
Mounting:   VESA 100/200 x 100 mm rear,
optional yoke mount stand
  • Our capability to provide delivery is as ever unrestricted.
  • You are welcome to make personal appointments with us in the form of Skype, video and telephone conferences.
  • All work processes are carried out digitally and – adapted to the situation – also locally in the home office.
