Full control with one system:

Stainless steel PPCs and LCDs for food and chemical industry

03.03.2020,

with the new series, we have added more operating comfort to our stainless steel Panel PCs and monitors, which have been well proven for many years:

Emergency stop and flat pushbuttons integrated in the robust and corrosion-protected stainless steel housing bring control and signalling directly into the working area. Unnecessary handling or navigating through HMI screens is no longer necessary – work processes are improved and therefore safer.

Your installation costs and wiring times are significantly reduced, because the connection to the systems to be controlled is very simple. The signal lines are IP65-protected at the rear, suitable cables are supplied.

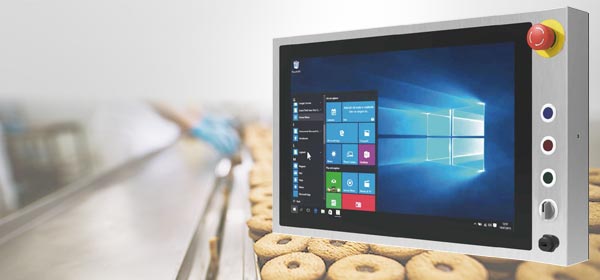

Panel PC B series made of stainless steel with integrated emergency stop and flat keys
21.5 inch PCAP touch screen with completely flat front surface without dirty edges
The 21.5" PCAP Multi-Touch screen with a completely flat front surface without any dirt edges is ideal for workplaces that require high hygiene standards and are cleaned frequently.
Stainless steel Panel PC and monitor in 10.1 and 19 inch
Interesting alternatives in the display sizes 10.1", 15" and 19" as well as a purely passive stainless steel monitor offer you more flexibility e.g. when space is limited.
IP65-protected connections on the rear of the stainless steel industrial PC
All interfaces are implemented via IP65-protected M12 connections – also for the emergency stop and the three front buttons. Matching cables are included in the scope of delivery.
Rotary switch at the front of the stainless steel Panel PC
The easy-grip rotary switch allows quick and user-friendly change between different touch modes for hand, rain and glove operation. (optionally other assignment possible)
Display:   21.5" / 1920 × 1080
projected capacitive multi-touch screen
CPU:   Celeron N2930 (4 × 1,83 GHz)
OS:   Windows 10 IoT Enterprise
Memory:   4 GB / 8 GB DDR3
Storage:   from 64 GB SSD
WLAN:   optional
Interfaces:   2 × USB, 1 × COM, 1 × RJ45-Ethernet,
CN1 + CN2 for front button control
Power:   9~36 VDC
Material:   Stainless steel brush-finished, SUS 316 / AISI 316
Mounting:   VESA 200 x 100 mm rear
Messe LogiMat
Stuttgart, 10. – 12. March 2020
Visit us!
Hall 8, Stand B81
