Various communication protocols and remote monitoring realized safely. Fanless embedded industrial PC with up to 6 × LAN and optionally integrated HDMI capture card (or CVBS).
͏ ͏ ͏ ͏ ͏ ͏ ͏ ͏
|
|
|
Various communication protocols and remote monitoring realized safely.
Fanless embedded industrial PC with up to 6 × LAN and optionally integrated HDMI capture card (or CVBS).
|
|
|
|
|
01.08.2023,
To meet the requirements of demanding IoT applications on only 205 × 110 mm, the rugged industrial PCs have extensive interfaces and extensions that support multiple communication and data transmission. Ideal for space-constrained industrial environments.
|

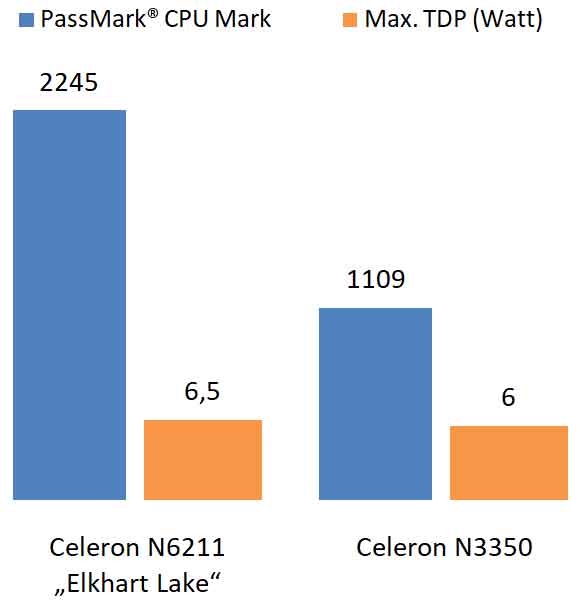

Intel® Celeron “Elkhart Lake” – this is the latest Celeron generation from the Intel Emedded Program for long-term available CPUs. With this high-performance, economical fanless system, you create future-proof applications with ample performance reserves under Windows 10 / 11 or Linux.
|
|
Realize a remote monitoring system via the optional built-in HDMI capture card (or CVBS) without additional adapters hanging loosely on the system.
|
Create lean and reliable system integrations for IoT applications, remote monitoring, embedded control, human-machine interfaces, interactive kiosk and digital signage, and many other industrial embedded and edge computing applications.
|

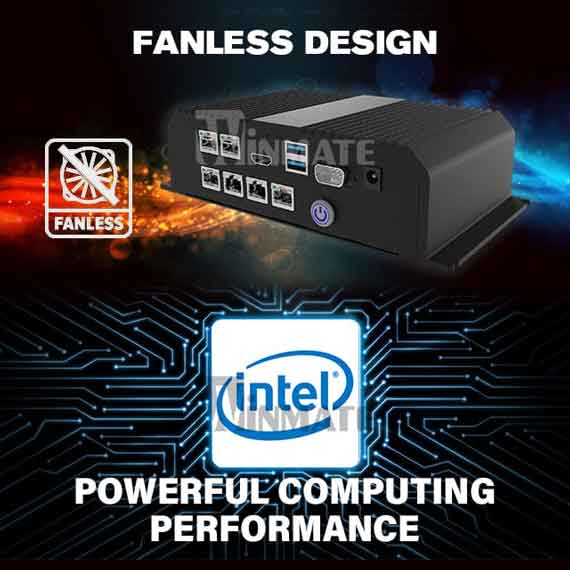

The durable slim housing in a closed aluminum design serves as a solid heat sink for fail-safe use even in 24/7 continuous operation at 0-55 °C operating temperature. The mounting rails allow easy and space-saving installation.
|
|
|
|
Configuration
|
|
CPUs:
|
Celeron N6210 (2 × 1,2–2,6 GHz),
Celeron N6211 (2 × 1,2–3,0 GHz)
|
|
OS Support:
|
Windows 10/11 IoT Enterprise (64 bit), Linux
|
|
RAM:
|
4 / 8 / 16 GB DDR4
|
|
Storage:
|
128 / 256 / 512 GB M.2 SSD
|
|
LAN:
|

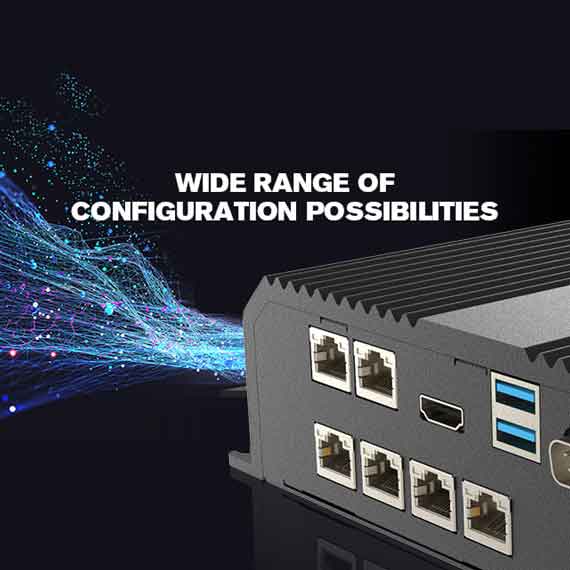

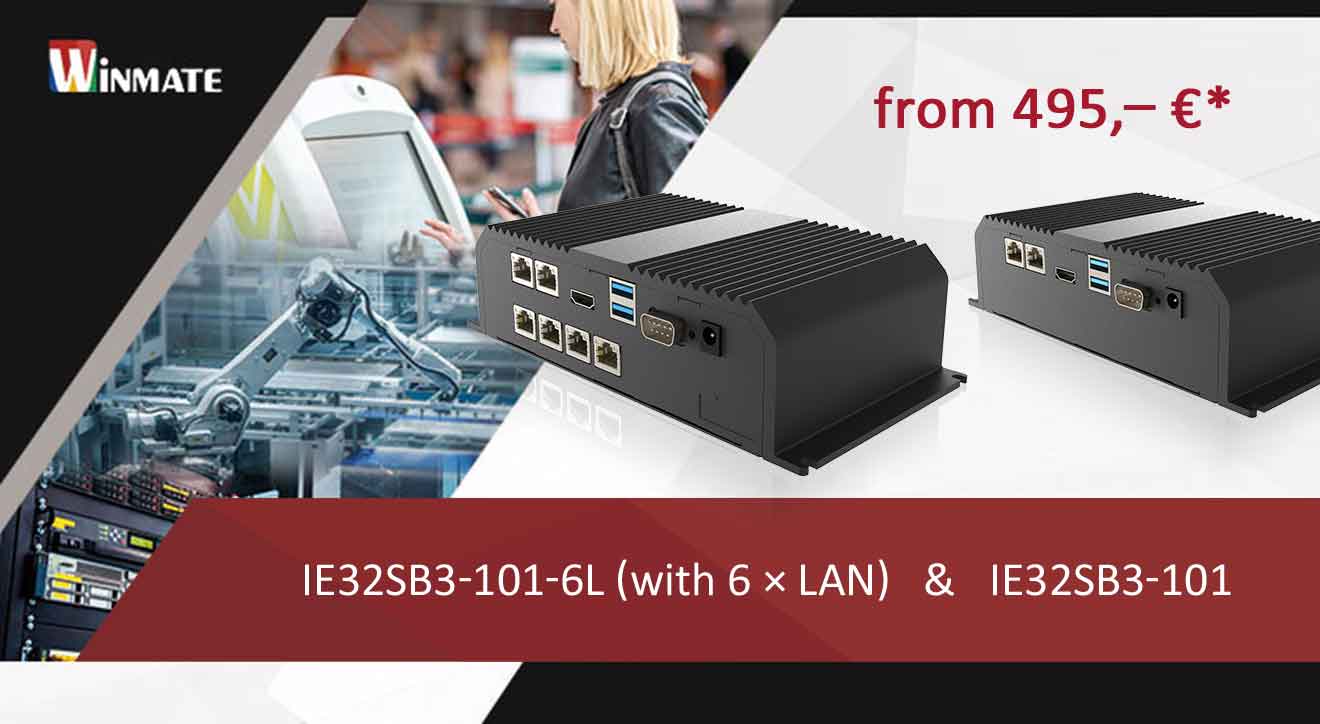

6 × RJ-45 (IE32SB3-101-6L)
2 × RJ-45 (IE32SB3-101)
|
|
Interfaces:
|
2 × USB 3.2, 1 × COM (optional 3 ×), HDMI 2.0
|
|
Capture Card:
|
optional for HDMI or CVBS input
|
|
Security:
|
TPM 2.0
|
|
Operating temp.:
|
0-55 °C
|
|
Dimensions:
|
205 × 110 × 55 mm
|
|
Material:
|
Aluminium
|
|
Mounting:
|
Wall or desk mounting
|
|
|
|
| • |
