Perfect elegant safety with new IP65 connection system: Panel PC Series R in stainless steel for excellent operational hygiene

New: Panel PC Series R in stainless steel for excellent operational hygiene

Perfect elegant safety with new IP65 connection system

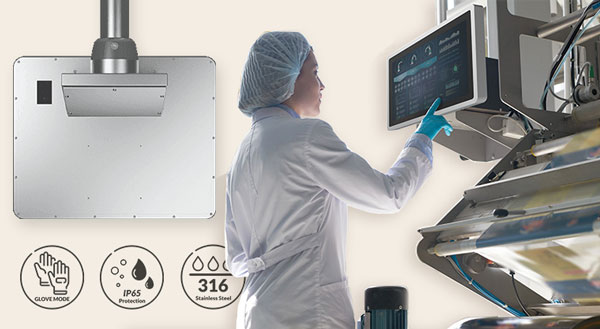

Stainless steel Panel PC Series R with IP65 all-round protection for hygiene-sensitive industrial applications

17.05.2022,

we present you the brand new product line of Panel PCs completely in high quality AISI / SUS 316 Stainless Steel Standard - the the R-Series. Continuous IP65 all-round protection is ensured in a particularly elegant and installation-friendly way with the newly developed stainless steel connection box.

The R Series is designed for dusty and humid environments and frequent cleaning, e.g. food industry, chemical plants, warehouses, etc. Various LCD sizes are available to meet the requirements of different applications.

The R-series stands for quality, reliability and durability of touch panel PCs in a new design.

Innovative as never before. User-friendly as never before. Flexible as never before.

New design with more value:
The R-Series has an absolutely flat touch surface with no dirty edges and also features rounded corners for even better cleaning. In addition, the rounded corner shape prevents impacts, scratches and injuries, thus increasing safety in the workplace.

AISI / SUS 316 Stainless Steel Standard:
Better corrosion resistance, tensile strength and acid resistance than standard SS 304.

Universal support system and junction box:
The R-Series has universal mounting options for various application scenarios. Support arm, stand and VESA mounts are easily mounted via the IP65-protected junction box.
It provides a protected elegant cable channel and facilitates installation. Install the panel PCs as a standalone unit, a suspension unit, or in any other way that suits your needs.

The rear mounting box with internal stainless steel cable routing ensures continuous IP65 protection

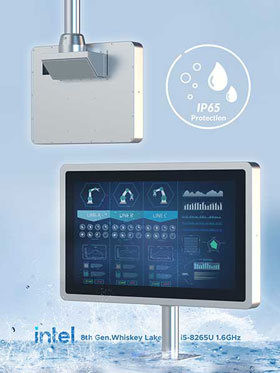

Stainless steel panel PC for wet and dusty environments.

Developed for washdown applications:
Fanless panel PCs made of stainless steel are indispensable when equipment must meet strict hygienic, mechanical or optical criteria. The R series has exceptional chemical and mechanical resistance and is ideal for the food and beverage industry, packaging, sanitaryware manufacturing, industrial automation, the chemical industry, logistics, warehousing and many other industries thanks to its full IP65 protection.

Touch with glove and rain mode:
Thanks to the sensitive PCAP multi-touch screen with absolutely flat, easy-to-clean front, you can enter, rotate, drag, drop and zoom data with bare fingers or gloves.

The Stainless R-Series IP65 can be operated even with gloves on

		Stainless R-Series IP65 Panel PCs
Touchscreen:		15" to 23.8" 1024 × 768 to 1920 × 1080 projected capacitive multi-touch (PCAP)
Protection:		IP65 all around incl. interfaces
Material:		AISI / SUS 316 stainless steel for the food and chemical industry
CPU:		8th generation Intel® Core™ i5-8265U
Operatingsystem:		Windows 10 IoT Enterprise
Communication:		2 × USB, RS-232, RJ45-Ethernet, WLAN / Bluetooth optional
Memory:		4–32 GB DDR4
Storage:		from 64 GB M.2-SSD
Mounting:		Support arm / stand / VESA mounting
