CL2501 - PQ370 - i3-9100
Automazione Industriale, PC industriale
19-inch Industrial PC for professional use Industrial computer in sturdy steel sheet housing Aluminium front with lockable door Mainboard version (ATX) 7 x expansion slot (low profile) 2 x 80 mm front fan with exchangeable filter pad Safe fixing of all cables and moving parts Configuration and interfaces as desired Designed for industrial applications in continuous operation Ready to install for the 19-inch rack Made in Germany Long-term availability

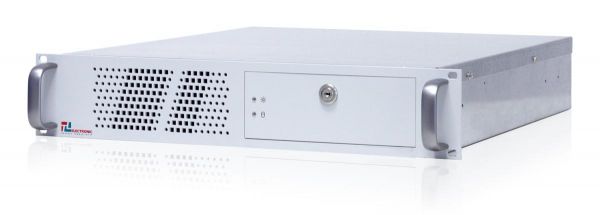

01-19-Zoll-Rack-Industrie-PC-CL2501 / TL Produkt-Welten / Industrie-PC / 19-Zoll Rack Mount
02-19-Zoll-Rack-Industriecomputer-Front-CL2501 / TL Produkt-Welten / Industrie-PC / 19-Zoll Rack Mount
03-19-Zoll-Rack-Industriecomputer-Front2-CL2501 / TL Produkt-Welten / Industrie-PC / 19-Zoll Rack Mount
Numero Ordine:
11200203
prezzo lordo: € 1.529,15
€ 1.285,00 *
prezzo lordo: € 1.529,15
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 11200203 |
| Manufacturer: | TL |
| Matchcode manufacturer: | nein |
| Manufacturer: | TL Electronic |
| series name: | ClassicLine |
| mechanics: | 19" Rack Mount |
| dimensions width: | 48,3 |
| dimensions height: | 8,8 |
| dimensions depth: | 49 |
| weight: | 12 |
| Material housing: | Aluminium und Stahlblech / aluminium and |
| Material Front : | Aluminium / aluminum |
| protection front: | IP54 |
| protection device: | IP20 |
| colour: | RAL 7035 / light grey |
| controls: | 2 Keys: Power, Reset, Status-LEDs |
| cooling: | aktiv / fan cooling |
| Bauhöhe: | 2HE |
| Mainboard form factor: | ATX |
| chipset: | Intel Q370 |
| CPU Typ : | Core i3 |
| CPU Model : | 9100 |
| CPU 64bit : | Ja |
| CPU speed: | 3,6 GHz |
| CPU cores: | 4 |
| CPU socket: | LGA1151, H4 |
| RAM size (MB): | 8192 |
| RAM max. size (MB): | 65536 |
| RAM Number of benches: | 4 |
| RAM Typ : | DDR4 |
| RAM speed: | 2400 |
| PCI Express x16 : | 1 |
| PCI Express x4 : | 3 |
| PCI Express x1 : | 1 |
| PCI : | 2 |
| Grafik Controller: | Intel HD Graphics 630 |
| Ethernet Controller: | Intel PHY 219 LM + Intel LAN 211 AT |
| Audio Controller: | Realtek ALC888S HD Codec |
| connections SATA: | 6 |
| USB internal connections: | 4x USB 2.0, 2x USB 3.0 |
| Connections Serial internal: | 5x RS-232, 1x RS-232/422/485 |
| SSD design: | 2.5" |
| SSD max. number: | 4 |
| SSD capacity (GB): | 256 |
| RAID-System : | Optional / optional |
| alternate Caddies: | Optional / optional |
| CD/DVD-Writer : | Ja / yes |
| USB : | 2 x USB 2.0 |
| controls: | Power On/Off, Kontroll-LEDs |
| Display : | 2x DisplayPort, 1x VGA |
| USB : | 4 x USB 3.1, 2 x USB 2.0 |
| LAN : | 2x RJ45 - 10/100/1000 Mbps |
| Audio : | Line-Out, Line-In, Mic in |
| serial: | 1 x RS-232, 1 x RS232/422/485 |
| PS/2: | 2x Mini-DIN |
| voltage input AC: | 100 - 240 V/AC |
| power adapter: | 400 Watt ATX, PS/2, intern |
| operating-system support: | Windows 10 IoT |
| operating temperatur min.: | 0°C |
| operating temperatur min.: | 50°C |
| warranty: | 24 Monate / 24 months |
Weiterführende Links zu "CL2501 - PQ370 - i3-9100"
Verfügbare Downloads:
- CE Konformitätserklärung DoC IPC CL2501_20122020
- CE_Industrie-PC CL2501 Gebrauchsanleitung 20220404
- CE_Industrial PC CL2501 Istruzioni per l'uso _italiano_ 20220404
- CE_Industrial PC CL2501 Instruction manual (english) 20220404
- CL250x_Filtermattentausch_Anhang A_V1
- Drawing Industrie-PC CL2501_30052022
