DL4501 - Q370
PC industriale desktop, PC industriale

Industrial PC for professional desktop use Desktop industrial computer in sturdy steel sheet housing Mainboard version (ATX) 7 x expansion slot 120 mm front fan with exchangeable filter pad Safe fixing of all cables and moving parts Configuration and interfaces as desired Designed for industrial applications in continuous operation Made in Germany Long-term availability

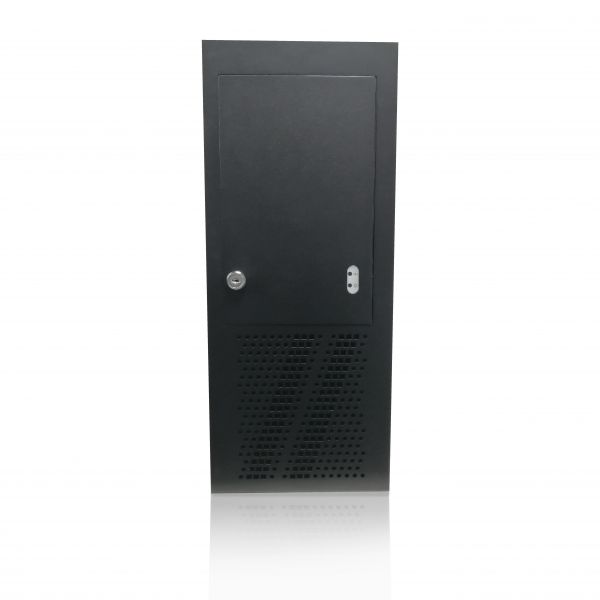

01-Desktop-Industrie-PC-Front -DL4501 / TL Produkt-Welten / Industrie-PC / Desktop Industrie-PC
01-Desktop-Industrie-PC-Front -DL4501 / TL Produkt-Welten / Industrie-PC / Desktop Industrie-PC
08-Desktop-Industrie-PC-Front -DL4501 / TL Produkt-Welten / Industrie-PC / Desktop Industrie-PC
08-Desktop-Industrie-PC-Front -DL4501 / TL Produkt-Welten / Industrie-PC / Desktop Industrie-PC
09-Desktop-Industrie-PC-Front -DL4501 / TL Produkt-Welten / Industrie-PC / Desktop Industrie-PC
09-Desktop-Industrie-PC-Front -DL4501 / TL Produkt-Welten / Industrie-PC / Desktop Industrie-PC

Numero Ordine: 14900299
prezzo lordo: € 1.517,25
€ 1.275,00 *

Prezzi più IVA più spese di spedizione

Tempi di consegna: su richiesta

HIGHLIGHTS
  • DeskLine Industrie PC
  • langzeitverfügbare Gehäuse made in Germany
  • volle Industrietauglichkeit
  • Langzeitverfügbarkeit
Scarica scheda tecnica in PDF

SPEZIFIKATIONEN
Numero Ordine: 14900299
Manufacturer: TL
Matchcode manufacturer: nein
Manufacturer: TL Electronic
series name: DeskLine
Manufacturer item number: DL4501
mechanics: Desktop
dimensions width: 17,65
dimensions height: 42,7
dimensions depth: 45,1
weight: 11,1
Material housing: Stahlblech / steel sheet
Material Front : Stahlblech / steel sheet
protection front: IP30
protection device: IP20
colour: RAL 9005 Tiefschwarz / Jet black
controls: 2 Keys: Power, Reset, Status-LEDs
cooling: aktiv / fan cooling
Mainboard form factor: ATX
chipset: Intel Q370
CPU Typ : Core i3
CPU Model : 9100
CPU 64bit : Ja
CPU speed: 3,60
CPU cores: 4
CPU socket: FCLGA1151
RAM size (MB): 8192
RAM Number of benches: 4
RAM Typ : DDR4
RAM speed: 2400
PCI Express x16 : 1
PCI Express x4 : 3
PCI Express x1 : 1
PCI : 2
Grafik Controller: Intel HD Gen 9 Graphics
Ethernet Controller: Intel PHY 219 LM + Intel LAN 211 AT
safety: TPM 2.0
connections SATA: 6
USB internal connections: 4x USB 2.0, 2x USB 3.0
Connections Serial internal: 6x RS-232/422/485
Mini-PCIe-slot: 1
Digital I/O : Ja / yes
SSD design: 2.5"
SSD max. number: 2
SSD capacity (GB): 256
RAID-System : Ja / yes
alternate Caddies: Optional / optional
CD/DVD-Writer : Optional / optional
Display : 2x DisplayPort, 1x VGA, 1x eDP
USB : 4 x USB 3.1, 2 x USB 2.0
LAN : 2x RJ45 - 10/100/1000 Mbps
Audio : Line-Out, Line-In, Mic in
serial: 2 x RS-232/422/485
PS/2: 1x Mini-DIN
controls: Power On/Off
voltage input AC: 100 - 240 V/AC
power adapter: 400 Watt ATX, PS/2, intern
operating temperatur min.: 0°C
operating temperatur min.: 50°C
warranty: 24 Monate / 24 months
