EmbeddedLine EL1092-Q
PC embedded
Booksize Industrial PC for professional use Industrial computer in sturdy aluminium housing 2 x drive bays, RAID option Designed for industrial applications in continuous operation Easy installation with mounting bars Long-term availability

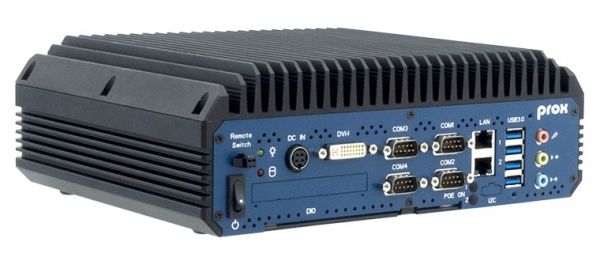

03-Embedded-Industrie-PC-Front-EL1092 / TL Produkt-Welten / Industrie-PC / Embedded-PC
02-Embedded-Industrie-PC-Front-EL1092 / TL Produkt-Welten / Industrie-PC / Embedded-PC
04-Embedded-Industrie-PC-Rear-EL1092 / TL Produkt-Welten / Industrie-PC / Embedded-PC
SE-8400E-2 / TL Produkt-Welten / Industrie-PC / Embedded-PC
SE-8400E-3 / TL Produkt-Welten / Industrie-PC / Embedded-PC
SE-8400E-4 / TL Produkt-Welten / Industrie-PC / Embedded-PC
Numero Ordine:
15100431
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 15100431 |
| Manufacturer: | PT |
| Matchcode manufacturer: | nein |
| Manufacturer: | Protech |
| series name: | EmbeddedLine |
| Manufacturer item number: | SE-8400 |
| mechanics: | Embedded-PC |
| dimensions width: | 26,0 |
| dimensions height: | 8,0 |
| dimensions depth: | 20,0 |
| weight: | 4,9 |
| Material housing: | Aluminium / aluminium |
| Material Front : | Aluminium / aluminum |
| protection front: | IP20 |
| protection device: | IP20 |
| colour: | Gehäuse schwarz / Front blau |
| controls: | 2 Keys: Power, Reset, Status-LEDs |
| wall mounting: | Optional / optional |
| cooling: | lüfterlos / fanless |
| chipset: | Intel Q170 |
| CPU Typ : | Core i3 |
| CPU Model : | 7100T |
| CPU 64bit : | Ja |
| CPU speed: | 3400 |
| CPU cores: | 2 |
| CPU socket: | LGA1151, H4 |
| CPU alternative option 1: | Core i5-7xxx |
| CPU alternative option 2: | Core i7-7xxx |
| CPU alternative option 3: | Core i5-6xxx |
| RAM size (MB): | 8192 |
| RAM max. size (MB): | 32768 |
| RAM Number of benches: | 2 |
| RAM Typ : | DDR4 |
| RAM speed: | 2133 |
| PCI Express x4 : | Optional / optional |
| PCI : | Optional / optional |
| Grafik Controller: | Intel HD Graphics 630 |
| Ethernet Controller: | Intel PHY219-LM + 210-AT |
| connections SATA: | 2 |
| USB internal connections: | 4x USB 2.0, 2x USB 3.0 |
| Connections Serial internal: | 4x RS-232 |
| Mini-PCIe-slot: | 1 |
| SSD design: | 2.5" |
| SSD max. number: | 2 |
| SSD capacity (GB): | 120 |
| RAID-System : | Ja / yes |
| Display: | 1x HDMI |
| USB : | 2 x USB 3.0 |
| Seriell : | 2 x RS-232 |
| SIM Card Slot : | Ja / yes |
| Cfast Card Slot : | Ja / yes |
| Display : | 1x DVI-I |
| USB : | 4 x USB 3.0 |
| LAN : | 2x RJ45 - 10/100/1000 Mbps |
| Audio : | Line-Out, Line-In, Mic in |
| serial: | 2 x RS-232, 2 x RS232/422/485 |
| controls: | Power On/Off |
| voltage input DC: | 9-36 V/DC |
| power adapter: | Optional externes Netzteil 100 - 240 V/A |
| WLAN: | Optional / optional |
| operating-system support: | Windows 7 / 8.1 / 10 IoT |
| operating temperatur min.: | -10°C |
| operating temperatur min.: | 50°C |
| warranty: | 24 Monate / 24 months |
Weiterführende Links zu "EmbeddedLine EL1092-Q"
Verfügbare Downloads:
- CE Konformitätserklärung DoC IPC EL1092_20190130
- Drawing Embedded-Industrie-PC EL1092 190228
- Gebrauchsanleitung IPC-EL1092-1093_20190130
- PT EL1092 Quick Reference Guide Q1
- PT EL1092 README V1.0
- PT EL1092 User Manual M1 190228
- Drawing Embedded-Industrie-PC EL1092_pci_20200731
- Drawing Embedded-Industrie-PC EL1092_pci-e_20200731
