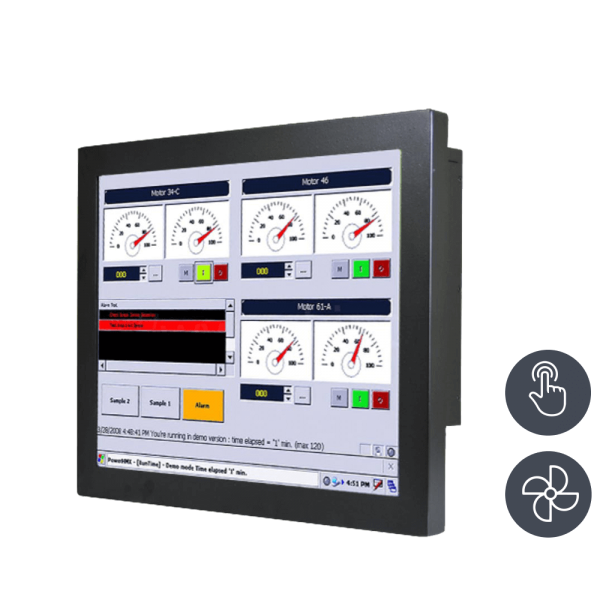

WM 19-IK70-CH-PRU
Touch-Screen funzionamento con un dito

Chassis Panel PC for professional use
Industrial Panel PC in sturdy steel sheet housing
Designed for industrial applications in continuous operation
Easy installation with rear VESA mounting interface
Long-term availability

01-Chassis-Industrie-Panel-PC-R19IK7T-CHM1
01-Chassis-Industrie-Panel-PC-R19IK7T-CHM1
13-Chassis-Panel-PC-Interfaces / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Touch-Screen für 1-Finger-Bedienung
13-Chassis-Panel-PC-Interfaces / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Touch-Screen für 1-Finger-Bedienung
15-Chassis-Panel-PC-Customized / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Touch-Screen für 1-Finger-Bedienung
15-Chassis-Panel-PC-Customized / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Touch-Screen für 1-Finger-Bedienung

Numero Ordine: 23191595
Prezzo su richiesta

Prezzi più IVA più spese di spedizione

Consegniamo / vendiamo esclusivamente a clienti / imprenditori commerciali.

Tempi di consegna: su richiesta

HIGHLIGHTS
  • robustes Stahlblech-Chassis
  • VESA-Montageschnittstelle
  • P-CAP / Resistiver Touch-Screen optional
  • Langzeitverfügbarkeit
Scarica scheda tecnica in PDF

SPEZIFIKATIONEN
Numero Ordine: 23191595
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: SlimLine-Serie
Manufacturer item number: R19IK7T-CHA1
mechanics: Chassis (VESA-Mounting)
dimensions width: 43,2
dimensions height: 36,2
dimensions depth: 7
Material housing: Stahlblech / steel sheet
Material Front : Stahlblech / steel sheet
protection front: IP65
protection device: IP54
colour: RAL 9004 / signal black
controls: 2 Keys: Power, Reset
VESA-Mounting Interface: VESA 75 x 75 mm, 100 x 100 mm
mounting: Tragarm-, Standfuß-, Wandmontage / Suppo
cooling: aktiv / fan cooling
Display-diagonal (inch): 19,0
aspect ratio: 4:3
resolution: 1280 x 1024
brightness: 400 cd/m²
contrast: 1000:1
Display-Technologie: LCD, LED Backlight
Touch-Screen or glass: Resistive Touch
Touch Interface: USB
Manufacturer controller: Premier
voltage input DC: 12 V/DC
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
input: 58 Watt
HDMI: 1 x HDMI (Type-A)
DisplayPort: 1 x DisplayPort
USB: 4 x USB 3.0
serial: 2 x RS-232, 1 x RS232/422/485
Audio: 1 x Line-in (3,5 mm), 2 x Speaker
LAN: 2x RJ45 - 10/100/1000 Mbps
Mainboard form factor: Mini-ITX
chipset: Intel H170
CPU Typ: Core i3
CPU Model: 7100T
CPU 64bit: Ja
CPU speed: 3,4 GHz
CPU cores: 2
CPU socket: FCLGA1151
RAM size (MB): 4096
RAM max. size (MB): 16384
RAM Number of benches: 1
RAM Typ: SO-DDR4
RAM speed: 2400
Grafik Controller: Intel HD Graphics 630
Audio Controller: Realtek ALC283 HD Codec
safety: TPM 2.0
connections SATA: 2
CPU class: Core i3 / i5 / i7
CPU alternative option 1: Core i3-7xxx
CPU alternative option 2: Core i5-7xxx
CPU alternative option 3: Core i7-7xxx
HDD design: 2.5"
HDD max. number: 1
HDD connection: SATA
HDD capacity (GB): 500
Ethernet connections: 2 x RJ-45
Ethernet data transfer: 2 x Gigabit-LAN
Ethernet Controller : Intel I112AT + PHYI219LM
MiniPCIe Slot WLAN/WWAN : 1
WLAN : Optional / optional
operating system: Optional
operating-system language version: deutsch / english / italian
operating-system support: Windows 10 IoT
operating temperatur min.: 0°C
operating temperatur max.: 50°C
warranty: 24 Monate / 24 months
