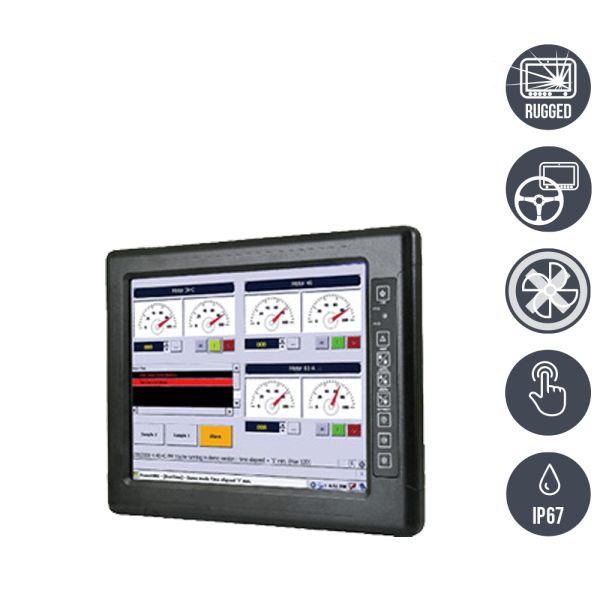

R15IK3S-67C3
Multitouch-Screen, Projected-Capacitive (PCAP), Touch-Screen funzionamento con un dito
Rugged Panel PC for stationary and vehicle-mounted use Industrial Panel PC in sturdy steel sheet housing Protection class IP65 all around incl. Interfaces Shock and vibration resistant acc. MIL-STD-810F/G Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Long-term availability
Front-right-R15IK3S-67C3(HB) / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Numero Ordine:
23152267
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 23152267 |
| Manufacturer: | WM |
| Matchcode manufacturer: | ja |
| Manufacturer: | Winmate |
| series name: | G-WIN-Serie |
| Manufacturer item number: | R15IK3S-67C3 |
| mechanics: | Chassis (VESA-Mounting) |
| dimensions width: | 39,8 |
| dimensions height: | 30,8 |
| dimensions depth: | 5,8 |
| weight: | 5,3 |
| Material housing: | Aluminium / aluminium |
| Material Front : | Aluminium / aluminum |
| protection front: | IP67 |
| protection device: | IP67 |
| colour: | schwarz / black |
| controls: | 5 Keys: -, +, Power, Esc, Enter |
| VESA-Mounting Interface: | VESA 100 x 100 mm |
| mounting: | Tragarm-, Standfuß-, Wandmontage / Suppo |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 15,0 |
| aspect ratio: | 4:3 |
| resolution: | 1024 x 768 |
| brightness: | 1000 cd/m² |
| contrast: | 700:1 |
| Display-Technologie: | LCD, LED Backlight |
| Touch-Screen or glass: | 5 Wire Resistive |
| Touch Interface: | USB |
| Manufacturer controller: | Premier |
| voltage input DC: | 9-36 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, IP65 |
| USB: | 2 x USB 2.0 (IP67) |
| serial: | 1 x RS-232 (IP67) |
| LAN: | 1x RJ45 - 10/100/1000 Mbps (IP67) |
| Mainboard form factor: | 3,5" |
| chipset: | Intel System on chip |
| CPU Typ: | Core i5 |
| CPU Model: | 7200U |
| CPU 64bit: | Ja |
| CPU speed: | 2,5 GHz |
| CPU cores: | 2 |
| CPU socket: | FCBGA1356 |
| RAM size (MB): | 4096 |
| RAM max. size (MB): | 16384 |
| RAM Number of benches: | 1 |
| RAM Typ: | DDR4 |
| RAM speed: | 2133 |
| Grafik Controller: | Intel HD Graphics 620 |
| connections SATA: | 1 |
| SSD design: | M.2 |
| SSD max. number: | 1 |
| SSD capacity (GB): | 64 |
| Ethernet connections: | 1 x RJ-45 |
| Ethernet data transfer: | 1 x Gigabit-LAN |
| Ethernet Controller : | Intel I112AT + PHYI219LM |
| operating system: | Windows 10 IoT Enterprise |
| operating-system language version: | deutsch / english / italian |
| operating temperatur min.: | -10°C |
| operating temperatur max.: | 55°C |
| warranty: | 24 Monate / 24 months |
