WM 19-ID32-ES-PRS
Panel-PC

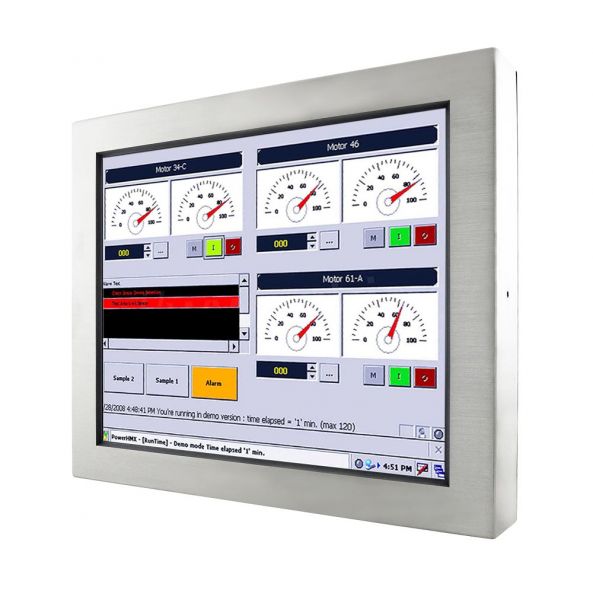

Robust industrial Panel PC made of brushed stainless steel Protection class IP65 all around incl. interfaces Easy to clean and corrosion resistant Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Perfect for food, chemical, pharmaceutical industry, medical technology, process engineering, plant construction etc.
01-Industrie-Panel-PC-IP65-Edelstahl-R19ID3S-65A1 / TL Produkt-Welten / Panel-PC / Chassis Edelstahl (VESA-Mounting) / Touch-Screen für 1-Finger-Bedienung
Numero Ordine:
23191228
prezzo lordo: € 1.660,05
€ 1.395,00 *
prezzo lordo: € 1.660,05
Prezzi più IVA più spese di spedizione
Pronto per la spedizione di oggi,
tempo di consegna ca. 1-3 giorni lavorativi
SPEZIFIKATIONEN
| Numero Ordine: | 23191228 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | ES-Serie |
| Manufacturer item number: | R19ID3S-65A1 |
| mechanics: | Chassis Edelstahl / stainless steel (VES |
| dimensions width: | 46,0 |
| dimensions height: | 38,5 |
| dimensions depth: | 6,3 |
| weight: | 10,2 |
| Material housing: | Edelstahl / stainless steel |
| Material Front : | Edelstahl / stainless steel |
| protection front: | IP65 |
| protection device: | IP65 |
| colour: | Edelstahl gebürstet / brushed stainless |
| controls: | 2 Keys: Power, Reset, Status-LEDs |
| VESA-Mounting Interface: | VESA 100 x 100 mm |
| mounting: | Tragarm-, Standfuß-, Wandmontage / Suppo |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 19,0 |
| aspect ratio: | 4:3 |
| resolution: | 1280 x 1024 |
| brightness: | 250 cd/m² |
| contrast: | 1000:1 |
| Display-Technologie: | LCD, LED Backlight |
| Touch-Screen or glass: | Resistive Touch |
| Touch Interface: | RS-232 |
| Manufacturer controller: | Premier |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, IP65 |
| USB: | 2 x USB 2.0 |
| serial: | 1 x RS-232 |
| LAN: | 1x RJ45 - 10/100/1000 Mbps |
| Mainboard form factor: | All in One |
| chipset: | Intel NHM10 |
| CPU Typ: | Atom |
| CPU Model: | D2550 |
| CPU 64bit: | Ja |
| CPU speed: | 1.86 GHz |
| CPU cores: | 2 |
| CPU socket: | FCBGA559 |
| RAM size (MB): | 4096 |
| RAM Number of benches: | 1 |
| RAM Typ: | SO-DDR3 |
| Audio Controller: | Realtek ALC886 HD Codec |
| CPU class: | Atom / Celeron |
| HDD design: | 2,5" |
| HDD max. number: | 1 |
| HDD connection: | SATA |
| HDD capacity (GB): | 500 |
| Ethernet connections: | 1 x RJ-45 |
| Ethernet data transfer: | 1 x Gigabit-LAN |
| Ethernet Controller : | Broadcom BCM57780 GbE Controller |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 45°C |
| warranty: | 12 Monate / 12 months |
Weiterführende Links zu "WM 19-ID32-ES-PRS"
Verfügbare Downloads:
- CE_Panel-PC ES-Serie Gebrauchsanleitung 20190130
- CE Konformitätserklärung DoC Panel-PC WM 19ID32-x-y-z
