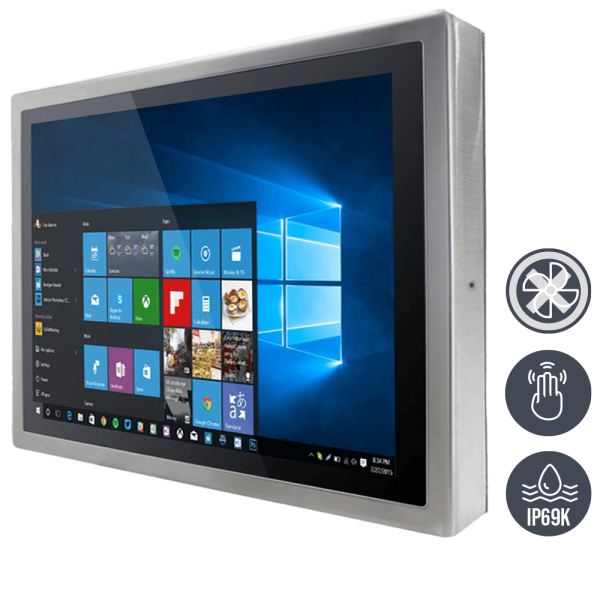

WM 24W-IW32-69K-ES-MTU
Automazione Industriale, Multitouch-Screen, Projected-Capacitive (PCAP), Panel-PC
Robust industrial Panel PC made of brushed stainless steel Protection class IP69K all around incl. interfaces Easy to clean and corrosion resistant Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Perfect for food, chemical, pharmaceutical industry, medical technology, process engineering, plant construction etc. Long-term availability
01-Industrie-Panel-PC-IP69K-Edelstahl-W24IW3S-SPA269.png / TL Produkt-Welten / Panel-PC / Chassis Edelstahl (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Numero Ordine:
23240044
prezzo lordo: € 2.689,40
€ 2.260,00 *
prezzo lordo: € 2.689,40
Prezzi più IVA più spese di spedizione
Pronto per la spedizione di oggi,
tempo di consegna ca. 1-3 giorni lavorativi
SPEZIFIKATIONEN
| Numero Ordine: | 23240044 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | ES-Serie |
| Manufacturer item number: | W24IW3S-SPA269 |
| mechanics: | Chassis Edelstahl / stainless steel (VES |
| dimensions width: | 62,0 |
| dimensions height: | 39,0 |
| dimensions depth: | 5,6 |
| weight: | 12,5 |
| Material housing: | Edelstahl / stainless steel |
| Material Front : | Edelstahl / stainless steel |
| protection front: | IP69K |
| protection device: | IP69K |
| colour: | Edelstahl gebürstet / brushed stainless |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | VESA 200 x 100 mm |
| mounting: | Tragarm-, Standfuß-, Wandmontage / Suppo |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 23,8 |
| aspect ratio: | 16:9 |
| resolution: | 1920 x 1080 |
| brightness: | 250 cd/m² |
| contrast: | 3000:1 |
| Display-Technologie: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 12 V/DC (M12 type) |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| USB: | 2 x USB 2.0 |
| serial: | 1 x RS-232 (M12 type) |
| LAN: | 1x RJ45 - 10/100/1000 Mbps (M12 type) |
| chipset: | SoC |
| CPU Typ: | Core i5 |
| CPU Model: | 8265U |
| CPU 64bit: | Ja |
| CPU speed: | 1,60 GHz |
| CPU cores: | 4 |
| CPU socket: | FCBGA1528 |
| RAM size (MB): | 8192 |
| RAM Number of benches: | 1 |
| RAM Typ: | SO-DDR4 |
| RAM speed: | 2400 |
| Grafik Controller: | Intel UHD Graphics for 8th Generation |
| safety: | TPM 2.0 |
| CPU class: | Core i3 / i5 / i7 |
| SSD design: | M.2 |
| SSD max. number: | 1 |
| SSD capacity (GB): | 256 |
| Ethernet connections: | 1 x RJ-45 |
| Ethernet data transfer: | 1 x Gigabit-LAN |
| Ethernet Controller : | Intel I210-AT + I219-LM |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 45°C |
| warranty: | 24 Monate / 24 months |
Weiterführende Links zu "WM 24W-IW32-69K-ES-MTU"
Verfügbare Downloads:
- CE Konformitätserklärung DoC Panel-PC WM 24-IW32-69K-ES-MTU
- Drawing Panel-PC W24IW3S-SPA269_14072022
