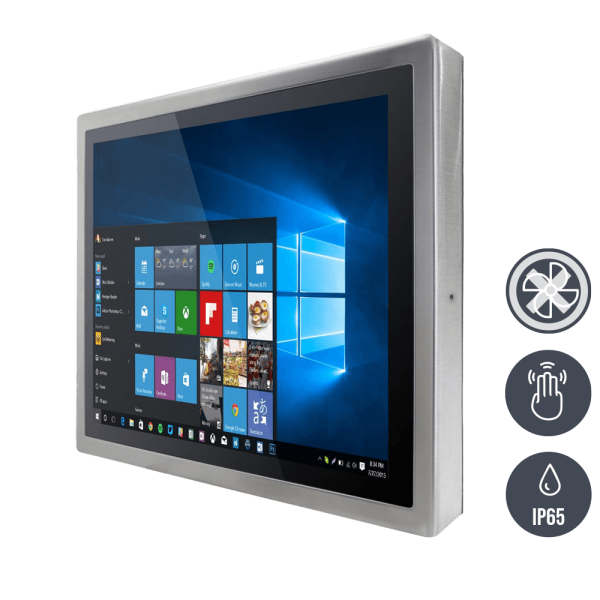

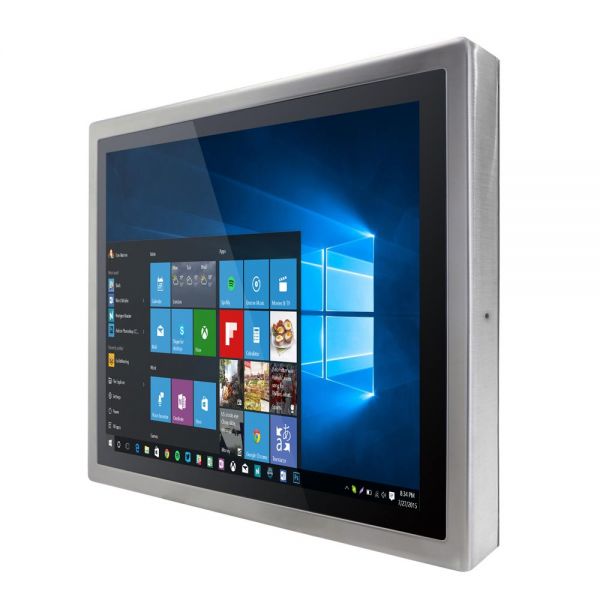

R19IB3S-SPM1
Multitouch-Screen, Projected-Capacitive (PCAP)
Robust industrial Panel PC made of brushed stainless steel Protection class IP65 all around incl. interfaces Easy to clean and corrosion resistant Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Perfect for food, chemical, pharmaceutical industry, medical technology, process engineering, plant construction etc. Long-term availability
01-front-R19IB3S-SPM1.png / TL Produkt-Welten / Panel-PC / Chassis Edelstahl (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Numero Ordine:
23191610
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 23191610 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | ES-Serie |
| Manufacturer item number: | R19IB3S-SPM1 |
| mechanics: | Chassis Edelstahl / stainless steel (VES |
| dimensions width: | 46,74 |
| dimensions height: | 39,2 |
| dimensions depth: | 5,66 |
| Material housing: | Edelstahl / stainless steel |
| Material Front : | Edelstahl / stainless steel |
| protection front: | IP65 |
| protection device: | IP54 |
| colour: | Edelstahl gebürstet / brushed stainless |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | VESA 100 x 100 mm |
| mounting: | Tragarm-, Standfuß-, Wandmontage / Suppo |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 19 |
| aspect ratio: | 4:3 |
| resolution: | 1280 x 1024 |
| brightness: | 250 cd/m² |
| contrast: | 1000:1 |
| Display-Technologie: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| input: | 45 Watt |
| USB: | 2 x USB 2.0 |
| serial: | 1 x RS-232 (IP65) |
| Audio: | 1 x Line-in (3,5 mm), 2 x Speaker |
| LAN: | 1x RJ45 - 10/100/1000 Mbps (IP65) |
| Mainboard form factor: | 3,5" |
| chipset: | Intel System on chip |
| CPU Typ: | Celeron Bay Trail-M |
| CPU Model: | N2930 |
| CPU 64bit: | Ja |
| CPU speed: | 1,8 GHz |
| CPU cores: | 1 |
| CPU socket: | CPU on Board |
| RAM size (MB): | 4096 |
| RAM max. size (MB): | 8192 |
| RAM Number of benches: | 1 |
| RAM Typ: | SO-DDR3L |
| RAM speed: | 1066 |
| Grafik Controller: | Graphics in CPU |
| Audio Controller: | Realtek ALC886 HD Codec |
| safety: | TPM 1.2 |
| connections SATA: | 1 |
| CPU class: | Atom / Celeron |
| HDD design: | 2,5 |
| SSD capacity (GB): | 128 |
| RAID-System: | Nein / no |
| CD/DVD-Writer : | Nein / no |
| WLAN : | Ja / yes |
| Bluetooth : | Nein / no |
| camera: | Nein / no |
| Barcode Scanner: | Nein / no |
| RFID Reader : | Nein / no |
| Betriebssystem: | Optional |
| operating-system language version: | deutsch / english / italian |
| operating-system support: | Windows 7 / 8.1 / 10 IoT |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 45°C |
| warranty: | 24 Monate / 24 months |
Weiterführende Links zu "R19IB3S-SPM1"
Verfügbare Downloads:
- CE Konformitätserklärung DoC Panel-PC WM 19-IB32-ES-x_20190130
- Drawing Panel-PC WM 19-IB32-ES 201007
- CE_Panel-PC ES-Serie Gebrauchsanleitung 20190130
