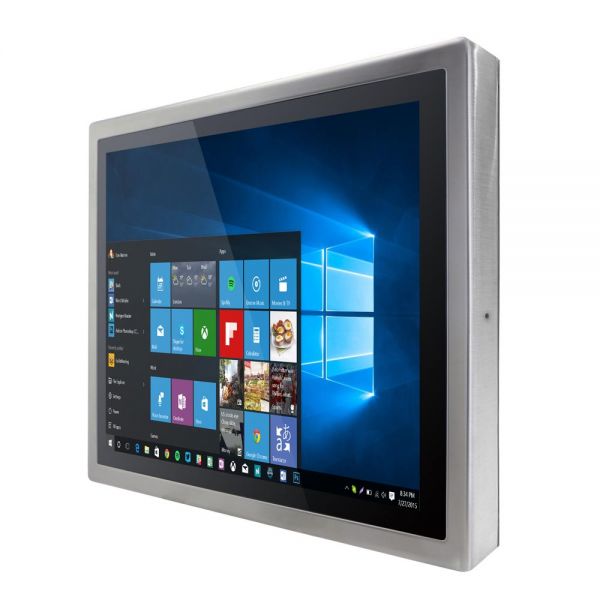

WM 15-IK32-ES-MTU
Multitouch-Screen, Projected-Capacitive (PCAP)
Widerstandsfähiger Industrie-Panel-PC aus gebürstetem Edelstahl
Schutzart IP65 rundum inkl. Schnittstellen
Leicht zu reinigen und korrosionsbeständig
Ausgelegt für industrielle Anwendungen im Dauerbetrieb
Einfache Installation mit rückseitiger VESA-Montageschnittstelle
Perfekt für Lebensmittel-, Chemie-, Pharmaindustrie, Medizintechnik, Verfahrenstechnik, Anlagenbau etc.
Langzeitverfügbarkeit
01-Industrie-Panel-PC-IP65-Edelstahl-PCAP-Multi-Touch-R15IK3S-SPC3 / TL Produkt-Welten / Panel-PC / Chassis Edelstahl (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Numero Ordine:
23152170
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 23152170 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | ES-Serie |
| Manufacturer item number: | R15IK3S-SPC3 |
| mechanics: | Chassis Edelstahl / stainless steel (VESA-Mounting) |
| dimensions width: | 37,8 |
| dimensions height: | 30,1 |
| dimensions depth: | 5,6 |
| Material housing: | Edelstahl / stainless steel |
| Material Front : | Edelstahl / stainless steel |
| protection front: | IP65 |
| protection device: | IP54 |
| colour: | Edelstahl gebürstet / brushed stainless steel |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | VESA 100 x 100 mm |
| mounting: | Tragarm-, Standfuß-, Wandmontage / Support arm, stand, wall mount |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 15 |
| aspect ratio: | 4:3 |
| resolution: | 1024 x 768 |
| brightness: | 300 cd/m² |
| contrast: | 2000:1 |
| Display-Technologie: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| input: | 52 Watt |
| USB: | 2 x USB 2.0 (IP65) |
| serial: | 1 x RS-232 (IP65) |
| Audio: | 1 x Line-in (3,5 mm), 2 x Speaker |
| LAN: | 1x RJ45 - 10/100/1000 Mbps (IP65) |
| Mainboard form factor: | 3,5" |
| chipset: | Intel System on chip |
| CPU Typ: | Core i5 |
| CPU Model: | 7200U |
| CPU 64bit: | Ja |
| CPU speed: | 2,5 GHz |
| CPU cores: | 1 |
| CPU socket: | CPU on Board |
| RAM size (MB): | 4096 |
| RAM max. size (MB): | 16384 |
| RAM Number of benches: | 1 |
| RAM Typ: | SO-DDR4 |
| RAM speed: | 2133 |
| Grafik Controller: | Intel HD Graphics 620 |
| Audio Controller: | Realtek ALC886 HD Codec |
| safety: | TPM 2.0 |
| connections SATA: | 2 |
| CPU class: | Core i3 / i5 / i7 |
| CPU alternative option 1: | Core i3-7xxx |
| CPU alternative option 2: | Core i5-7xxx |
| CPU alternative option 3: | Core i7-7xxx |
| SSD design: | M.2 |
| SSD capacity (GB): | 128 |
| RAID-System: | Nein / no |
| Ethernet connections: | 1 x RJ-45 |
| MiniPCIe Slot WLAN/WWAN : | 1 |
| WLAN : | Optional / optional |
| Bluetooth : | optional / optional |
| operating system: | Optional |
| operating-system language version: | deutsch / english / italian |
| operating-system support: | Windows 10 IoT |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 45°C |
| warranty: | 24 Monate / 24 months |
Weiterführende Links zu "WM 15-IK32-ES-MTU"
Verfügbare Downloads:
- CE_Panel-PC ES-Serie Gebrauchsanleitung 20190130
- CE Konformitätserklärung DoC Panel-PC WM 15-IK32-x-y-z_201013
- Drawing Cable WM xx-IK32-ES 201007
- Drawing Panel-PC R15IK3S-SPC3 201007
