WM 15-IK32-69K-ES-MTU
Multitouch-Screen, Projected-Capacitive (PCAP)

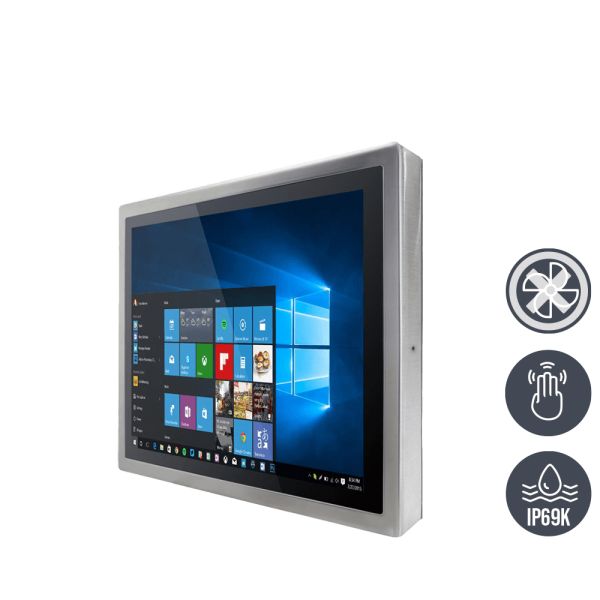

Robust industrial Panel PC made of brushed stainless steel Protection class IP69K all around incl. interfaces Easy to clean and corrosion resistant Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Perfect for food, chemical, pharmaceutical industry, medical technology, process engineering, plant construction etc. Long-term availability
01-R15IK3S-SPC369-Front-right / TL Produkt-Welten / Panel-PC / Chassis Edelstahl (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Numero Ordine:
23152328
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 23152328 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | ES-Serie |
| Manufacturer item number: | R15IK3S-SPC369 |
| mechanics: | Chassis Edelstahl / stainless steel (VES |
| dimensions width: | 37,8 |
| dimensions height: | 30,1 |
| dimensions depth: | 5,64 |
| Material housing: | Edelstahl / stainless steel |
| Material Front : | Edelstahl / stainless steel |
| protection front: | IP69K |
| protection device: | IP69K |
| colour: | Edelstahl gebürstet / brushed stainless |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | VESA 100 x 100 mm |
| mounting: | Tragarm-, Standfuß-, Wandmontage / Suppo |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 15 |
| aspect ratio: | 4:3 |
| resolution: | 1024 x 768 |
| brightness: | 250 cd/m² |
| contrast: | 700:1 |
| Display-Technologie: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, IP65 |
| input: | 52 Watt |
| USB: | 2 x USB 2.0 |
| serial: | 1 x RS-232 |
| LAN: | 1x RJ45 - 10/100/1000 Mbps |
| chipset: | SoC |
| CPU Typ: | Core i5 |
| CPU Model: | 7200U |
| CPU 64bit: | Ja |
| CPU speed: | 2,5 GHz |
| CPU cores: | 2 |
| CPU socket: | FCBGA1356 |
| RAM size (MB): | 4096 |
| RAM max. size (MB): | 16384 |
| RAM Number of benches: | 1 |
| RAM Typ: | DDR4 |
| RAM speed: | 2133 |
| Grafik Controller: | Intel HD Graphics 620 |
| Audio Controller: | Realtek ALC283 HD Codec |
| safety: | TPM 2.0 |
| connections SATA: | 1 |
| SSD design: | M.2 |
| SSD max. number: | 1 |
| SSD capacity (GB): | 128 |
| Ethernet connections: | 1 x RJ-45 |
| Ethernet data transfer: | 1 x Gigabit-LAN |
| operating system: | Windows 10 IoT Enterprise |
| operating-system language version: | deutsch / english / italian |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 45°C |
| warranty: | 24 Monate / 24 months |
Weiterführende Links zu "WM 15-IK32-69K-ES-MTU"
Verfügbare Downloads:
- CE_Panel-PC ES-Serie Gebrauchsanleitung 20190130
- CE Konformitätserklärung DoC Panel-PC WM 15-IK32-x-y-z_201013
- Drawing Cable WM xx-IK32-ES 201007
- Drawing Panel-PC R15IK3S-SPC3 201007
