WM 15-IK70-19-PRU
Touch-Screen funzionamento con un dito
Built-in Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust steel sheet front panel (IP65 protected) Designed for industrial applications in continuous operation Ready to install for the 19-inch rack Long-term availability

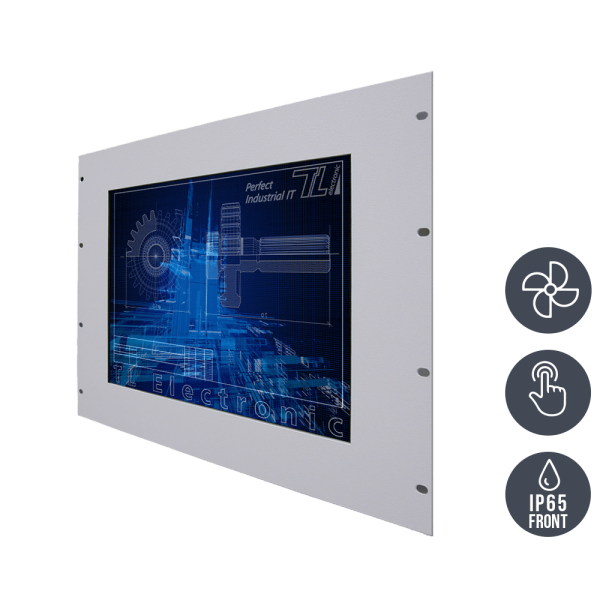

01-Industrie-Panel-PC-19-Zoll-Rack-Einbau-WM15-1.png / TL Produkt-Welten / Panel-PC / 19-Zoll Rack Mount / Touch-Screen für 1 Finger-Bedienung
Numero Ordine:
23152140
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 23152140 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | SlimLine-Serie |
| Manufacturer item number: | R15IK7T-OFC3 |
| mechanics: | 19" Rack Mount |
| dimensions width: | 48,3 |
| dimensions height: | 35,4 |
| dimensions depth: | 6,6 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Stahlblech / steel sheet |
| protection front: | IP65 |
| protection device: | IP20 |
| colour: | RAL 7035 / light grey |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | VESA 75 x 75 mm, 100 x 100 mm |
| mounting: | Einbau von vorne / front installation |
| cooling: | aktiv / fan cooling |
| Display-diagonal (inch): | 15,0 |
| aspect ratio: | 4:3 |
| resolution: | 1024 x 768 |
| brightness: | 250 cd/m² |
| contrast: | 500:1 |
| Display-Technologie: | LCD, LED Backlight |
| Touch-Screen or glass: | Resistive Touch |
| Touch Interface: | USB |
| Manufacturer controller: | Premier |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| input: | 58 Watt |
| HDMI: | 1 x HDMI (Type-A) |
| DisplayPort: | 1 x DisplayPort |
| USB: | 4 x USB 3.0 |
| serial: | 2 x RS-232, 1 x RS232/422/485 |
| Audio: | 1 x Line-in (3,5 mm), 2 x Speaker |
| LAN: | 2x RJ45 - 10/100/1000 Mbps |
| Mainboard form factor: | Mini-ITX |
| chipset: | Intel Q170 |
| CPU Typ: | Core i3 |
| CPU Model: | 7100T |
| CPU 64bit: | Ja |
| CPU speed: | 3,4 GHz |
| CPU cores: | 2 |
| CPU socket: | FCLGA1151 |
| RAM size (MB): | 4096 |
| RAM max. size (MB): | 16384 |
| RAM Number of benches: | 1 |
| RAM Typ: | SO-DDR4 |
| RAM speed: | 2400 |
| Grafik Controller: | Intel HD Graphics 630 |
| Audio Controller: | Realtek ALC283 HD Codec |
| safety: | TPM 2.0 |
| connections SATA: | 2 |
| CPU class: | Core i3 / i5 / i7 |
| CPU alternative option 1: | Core i5-7xxx |
| CPU alternative option 2: | Core i7-7xxx |
| CPU alternative option 3: | Core i3-7xxx |
| HDD design: | 2.5" |
| SSD design: | M.2 |
| SSD capacity (GB): | 128 |
| RAID-System: | Nein / no |
| CD/DVD-Writer : | Nein / no |
| Ethernet connections: | 2 x RJ-45 |
| Ethernet data transfer: | 2 x Gigabit-LAN |
| Ethernet Controller : | Intel I225LM + I219LM |
| MiniPCIe Slot WLAN/WWAN : | 1 |
| WLAN : | Optional / optional |
| Bluetooth : | Nein / no |
| camera: | Nein / no |
| Barcode Scanner: | Nein / no |
| RFID Reader : | Nein / no |
| operating system: | Optional |
| operating-system language version: | deutsch / english / italian |
| operating-system support: | Windows 10 IoT |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 50°C |
| warranty: | 24 Monate / 24 months |
