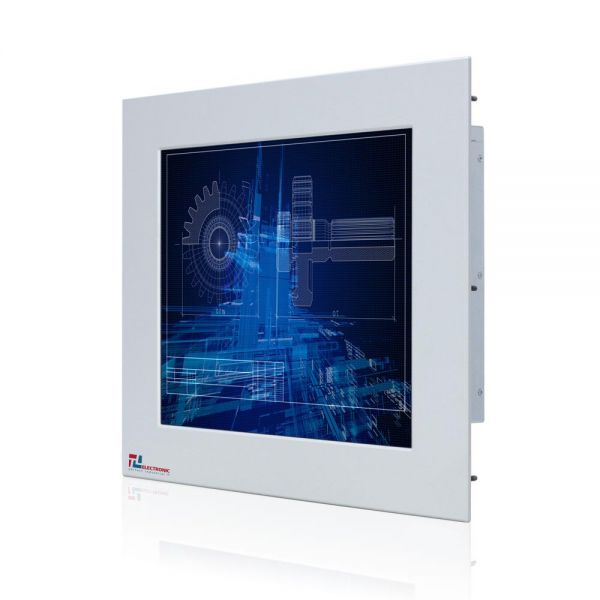

WM 15-IF70-PMA-PRU
Touch-Screen funzionamento con un dito
Einbau-Panel-PC für den professionellen Einsatz
Panel-Industrie-PC in robuster Stahlblechausführung
Stabile Aluminium-Frontplatte (IP65-geschützt)
Ausgelegt für industrielle Anwendungen im Dauerbetrieb
Panelmount-Einbau mit rückseitigen Gewindebolzen
Langzeitverfügbarkeit
01-Industrie-Panel-PC-WM15PMA-IP65-Einbau / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Touch-Screen für 1-Finger-Bedienung
Numero Ordine:
23152385
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 23152385 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | IF-Serie |
| Manufacturer item number: | R15IFT-OFC3 |
| mechanics: | Panel Mount |
| dimensions width: | 35,8 |
| dimensions height: | 29,2 |
| dimensions depth: | 6,3 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Aluminium / aluminum |
| protection front: | IP65 |
| protection device: | IP22 |
| colour: | RAL 7035 / light grey |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | VESA 75 x 75 mm, 100 x 100 mm |
| mounting: | Einbau von vorne / front installation |
| cooling: | aktiv / fan cooling |
| Display-diagonal (inch): | 15,0 |
| aspect ratio: | 4:3 |
| resolution: | 1024 x 768 |
| brightness: | 300 cd/m² |
| contrast: | 2000:1 |
| Display-Technologie: | LCD, LED Backlight |
| Touch-Screen or glass: | Resistive Touch |
| Touch Interface: | USB |
| Manufacturer controller: | Premier |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| HDMI: | 1 x HDMI 1.4 |
| USB: | 4 x USB 3.2 Gen.1 (Type-A) |
| serial: | 1 x RS-232 |
| Audio: | 1 x Mic-In, 1 x Line-Out, 2 x Speaker |
| LAN: | 2x RJ45 - 10/100/1000 Mbps |
| Mainboard form factor: | All in One |
| chipset: | Intel Q370 |
| CPU Typ: | Core i3 |
| CPU Model: | 9100TE |
| CPU 64bit: | Ja |
| CPU speed: | 2,2 GHz |
| CPU cores: | 4 |
| CPU socket: | FCLGA1151 |
| RAM size (MB): | 4096 |
| RAM max. size (MB): | 64000 |
| RAM Number of benches: | 1 |
| RAM Typ: | SO-DDR4 |
| RAM speed: | 2400 |
| Grafik Controller: | Intel UHD Graphics 630 |
| Audio Controller: | Realtek ALC283 HD Codec |
| safety: | TPM 2.0 |
| CPU class: | Core i3 / i5 / i7 |
| CPU alternative option 1: | Core i5-9xxx |
| CPU alternative option 2: | Core i7-9xxx |
| Expansion slots: | 1 x PCIe-x16 (optional) |
| SSD design: | M.2 |
| SSD max. number: | 1 |
| SSD capacity (GB): | 128 |
| Ethernet connections: | 2 x RJ-45 |
| Ethernet data transfer: | 2 x Gigabit-LAN |
| Ethernet Controller : | Intel I112AT + PHYI219LM |
| MiniPCIe Slot WLAN/WWAN : | 1 |
| WLAN : | Optional / optional |
| Bluetooth : | optional / optional |
| operating system: | Optional |
| operating-system language version: | deutsch / english / italian |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 50°C |
| warranty: | 24 Monate / 24 months |
