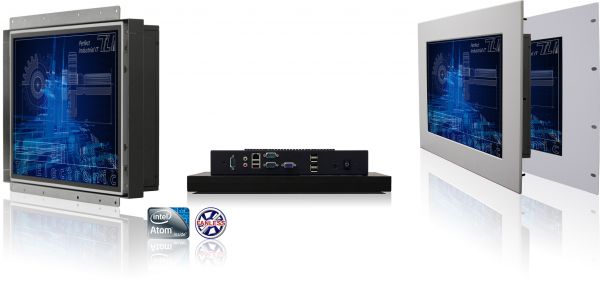

MT 19-880-D510
Panel-PC
19,0 Zoll Einbau-Panel-PC für den professionellen Einsatz
Panel-Industrie-PC in robuster Stahlblechausführung
Stabile Aluminium-Frontplatte (IP65-geschützt)
Ausgelegt für industrielle Anwendungen im Dauerbetrieb
Panelmount-Einbau mit rückseitigen Gewindebolzen
01-Chassis-Industrie-Panel-PC-slimline-mt-19-880-of / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Touch-Screen für 1-Finger-Bedienung
Numero Ordine:
24190031
prezzo lordo: € 708,05
€ 595,00 *
prezzo lordo: € 708,05
Prezzi più IVA più spese di spedizione
Pronto per la spedizione di oggi,
tempo di consegna ca. 1-3 giorni lavorativi
SPEZIFIKATIONEN
| Numero Ordine: | 24190031 |
| Manufacturer: | MT |
| Matchcode manufacturer: | nein |
| series name: | SlimLine-Serie |
| Manufacturer item number: | MT 19-880 |
| mechanics: | Panel Mount |
| dimensions width: | 48,3 |
| dimensions height: | 39,9 |
| dimensions depth: | 5,0 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Aluminium / aluminum |
| protection front: | IP20 |
| protection device: | IP65 |
| colour: | RAL 7035 / light grey |
| controls: | 2 Keys: Power, Reset, Status-LEDs |
| VESA-Mounting Interface: | VESA 75 x 75 mm |
| mounting: | Einbau von vorne / front installation |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 19,0 |
| aspect ratio: | 4:3 |
| resolution: | 1280 x 1024 |
| brightness: | 300 cd/m² |
| contrast: | 800:1 |
| Display-Technologie: | LCD, LED Backlight |
| Touch-Screen or glass: | Resistive Touch |
| voltage input DC: | 19 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| VGA: | 1 x 15-pin D-sub |
| USB: | 4 x USB 2.0 |
| serial: | 2 x RS-232, 1 x RS232/422/485 |
| Audio: | 2 x Speaker |
| chipset: | Intel 82801HM |
| CPU Typ: | Atom |
| CPU Model: | D510 |
| CPU 64bit: | Ja |
| CPU speed: | 1,66 GHz |
| CPU cores: | 2 |
| CPU socket: | FCBGA559 |
| RAM size (MB): | 4096 |
| RAM Number of benches: | 1 |
| RAM Typ: | DDR2 |
| Grafik Controller: | on board |
| Audio Controller: | Realtek ALC655 |
| CPU class: | Atom / Celeron |
| SSD design: | 2.5" |
| SSD max. number: | 1 |
| SSD capacity (GB): | 128 |
| Ethernet connections: | 1 x RJ-45 |
| Ethernet data transfer: | 1 x Gigabit-LAN |
| Ethernet Controller : | Realtek RTL8111/8168 |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 45°C |
| warranty: | 12 Monate / 12 months |
