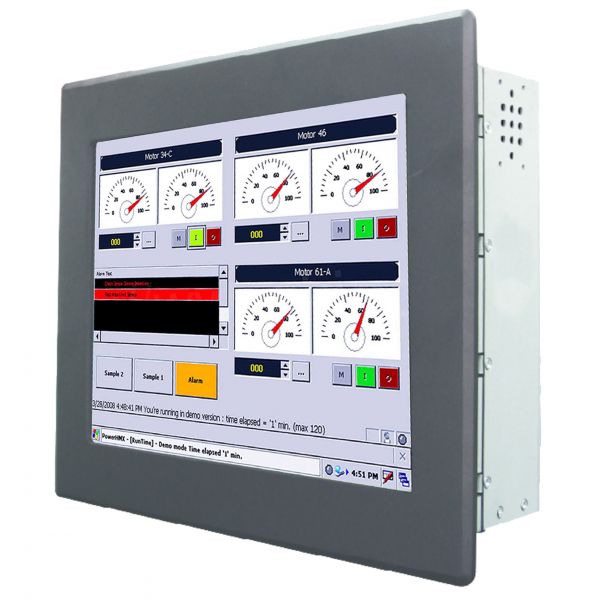

HMI ARM 07-SA20
Panel-PC
Built-in Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust aluminium front panel (IP65 protected) Designed for industrial applications in continuous operation Panelmount installation with rear screwed bolts
01-Einbau-Industrie-Panel-PC / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Touch-Screen für 1-Finger-Bedienung (Abbildung ähnlich)
Numero Ordine:
23070000
prezzo lordo: € 339,15
€ 285,00 *
prezzo lordo: € 339,15
Prezzi più IVA più spese di spedizione
Pronto per la spedizione di oggi,
tempo di consegna ca. 1-3 giorni lavorativi
SPEZIFIKATIONEN
| Numero Ordine: | 23070000 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| Manufacturer item number: | W07SA20-PMA2HM |
| mechanics: | Panel Mount |
| dimensions width: | 21,8 |
| dimensions height: | 16,4 |
| dimensions depth: | 5,8 |
| weight: | 1,1 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Aluminium / aluminum |
| protection front: | IP20 |
| protection device: | IP65 |
| colour: | schwarz / black |
| controls: | 2 Keys: Power, Reset |
| mounting: | Einbau von vorne / front installation |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 7,0 |
| aspect ratio: | 4:3 |
| resolution: | 800 x 480 |
| brightness: | 350 cd/m² |
| contrast: | 300:1 |
| Display-Technologie: | LCD, LED Backlight |
| Touch-Screen or glass: | 4-Wire Resistive |
| Touch Interface: | RS-232 |
| Manufacturer controller: | Premier |
| voltage input DC: | 12 V/DC |
| USB: | 2 x USB 2.0, 1 x Mini USB |
| serial: | 1 x RS-232, 1 x RS232/422/485 |
| Mainboard form factor: | All in One |
| CPU Typ: | Samsung |
| CPU Model: | 6410 |
| CPU speed: | 667 MHz |
| RAM size (MB): | 128 |
| RAM Typ: | DDR |
| RAM speed: | 266 |
| Audio Controller: | AC97 Audio Codec |
| Ethernet Controller : | DAVICOM DM9000B |
| operating system: | Linux 2.6.24 |
| operating-system language version: | english |
| warranty: | 12 Monate / 12 months |
