WM 15-IK70-PME-PRU
no Touch-Screen, Touch-Screen funzionamento con un dito

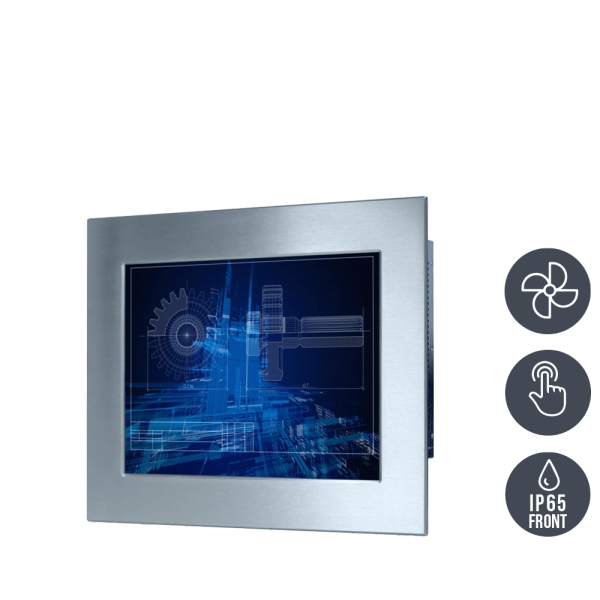

Built-in Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust stainless steel front panel (IP65 protected) Designed for industrial applications in continuous operation Panelmount installation with rear screwed bolts Long-term availability
01-Industrie-Panel-PC-WM15PME-Edelstahl-IP65-Einbau-mL.png / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Touch-Screen für 1-Finger-Bedienung
Numero Ordine:
23152150
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 23152150 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | SlimLine-Serie |
| Manufacturer item number: | R15IK7T-OFC3 |
| mechanics: | Panel Mount |
| dimensions width: | 41 |
| dimensions height: | 34 |
| dimensions depth: | 5,3 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Edelstahl / stainless steel |
| protection front: | IP65 |
| protection device: | IP22 |
| colour: | RAL 7035 / light grey |
| controls: | 2 Keys: Power, Reset, Status-LEDs |
| VESA-Mounting Interface: | VESA 75 x 75 mm |
| mounting: | Einbau von vorne / front installation |
| cooling: | aktiv / fan cooling |
| Display-diagonal (inch): | 15 |
| aspect ratio: | 4:3 |
| resolution: | 1024 x 768 |
| brightness: | 250 cd/m² |
| contrast: | 700:1 |
| Display-Technologie: | LCD, LED Backlight |
| Touch-Screen or glass: | Resistive Touch |
| Touch Interface: | USB |
| Manufacturer controller: | Premier |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, 4-pin |
| input: | 25 Watt |
| VGA: | 1 x 15-pin D-sub |
| DVI: | 1 x DVI-D |
| HDMI: | 1 x HDMI (Type-A) |
| DisplayPort: | 1 x DisplayPort |
| Video: | 1 x Composite (PAL / NTSC) |
| USB: | 1 x USB 2.0 |
| serial: | 1 x RS-232 (9-pin D-sub) |
| Audio: | 1 x Line-in (3,5 mm), 2 x Speaker |
| LAN: | 2x RJ45 - 10/100/1000 Mbps |
| PS/2: | 2x Mini-DIN |
| Mainboard form factor: | Mini-ITX |
| chipset: | Intel Q170 |
| CPU Typ: | Core i3 |
| CPU Model: | 7100T |
| CPU 64bit: | Ja |
| CPU speed: | 3,4 GHz |
| CPU cores: | 2 |
| CPU socket: | FCLGA1151 |
| RAM size (MB): | 4096 |
| RAM max. size (MB): | 16384 |
| RAM Number of benches: | 1 |
| RAM Typ: | DDR4 |
| RAM speed: | 2400 |
| Grafik Controller: | Intel HD Graphics 630 |
| Audio Controller: | Realtek ALC283 HD Codec |
| safety: | TPM 2.0 |
| connections SATA: | 2 |
| CPU class: | Core i3 / i5 / i7 |
| CPU alternative option 1: | Core i3-7xxx |
| CPU alternative option 2: | Core i5-7xxx |
| CPU alternative option 3: | Core i7-7xxx |
| Expansion slots: | 1 x PCIe-x4 |
| HDD design: | 2.5" |
| HDD max. number: | 1 |
| HDD connection: | SATA |
| HDD capacity (GB): | 500 |
| RAID-System: | Nein / no |
| CD/DVD-Writer : | Nein / no |
| Ethernet connections: | 2 x RJ-45 |
| Ethernet data transfer: | 2 x Gigabit-LAN |
| Ethernet Controller : | Intel I225LM + I219LM |
| MiniPCIe Slot WLAN/WWAN : | 1 |
| WLAN : | Optional / optional |
| Bluetooth : | Nein / no |
| camera: | Nein / no |
| Barcode Scanner: | Nein / no |
| RFID Reader : | Nein / no |
| Betriebssystem: | Windows 10 IoT Enterprise ENTRY |
| operating-system language version: | deutsch / english / italian |
| operating-system support: | Windows 10 IoT |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 50°C |
| warranty: | 24 Monate / 24 months |
