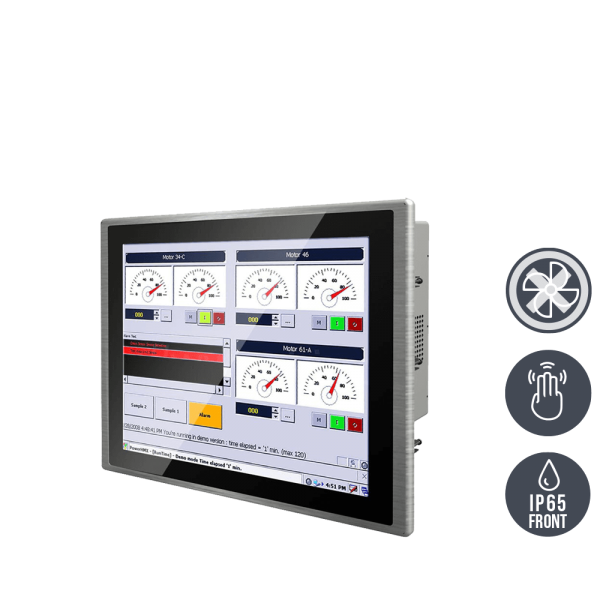

WM 15W-IK32-PMA-MTU
Multitouch-Screen, Projected-Capacitive (PCAP)
Multitouch Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust aluminium front panel (IP65 protected) Flat PCAP glass front without dirt-collecting edges Designed for industrial applications in continuous operation Panelmount installation with rear holding clamps or female screw threads Long-term availability
01-PCAP-Multitouch-Industrie-Panel-PC-W15IK3S-PPA4.png / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Numero Ordine:
23152235
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 23152235 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | MTU-Serie |
| Manufacturer item number: | W15IK3S-PPA4 |
| mechanics: | Panel Mount |
| dimensions width: | 41,5 |
| dimensions height: | 27,5 |
| dimensions depth: | 7,1 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Aluminium / aluminum |
| protection front: | IP65 |
| protection device: | IP20 |
| colour: | Aluminium gebürstet / aluminum brushed |
| controls: | 2 Keys: Power, Reset, Status-LEDs |
| VESA-Mounting Interface: | VESA 75 x 75 mm, 100 x 100 mm |
| mounting: | Einbau von vorne / front installation |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 15 |
| aspect ratio: | 16:9 |
| resolution: | 1920 x 1080 |
| brightness: | 300 cd/m² |
| contrast: | 800:1 |
| Display-Technologie: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, DC plug |
| HDMI: | 1 x HDMI (optional) |
| USB: | 2 x USB 3.0 |
| serial: | 1 x RS-232/422/485 |
| LAN: | 2x RJ45 - 10/100/1000 Mbps |
| Mainboard form factor: | All in One |
| chipset: | Intel System on chip |
| CPU Typ: | Core i5 |
| CPU Model: | 7200U |
| CPU 64bit: | Ja |
| CPU speed: | 2,5 GHz |
| CPU cores: | 2 |
| CPU socket: | FCBGA1356 |
| RAM size (MB): | 4096 |
| RAM max. size (MB): | 16384 |
| RAM Number of benches: | 2 |
| RAM Typ: | SO-DDR4 |
| RAM speed: | 2133 |
| Grafik Controller: | Intel HD Graphics 620 |
| Audio Controller: | Realtek ALC283 HD Codec |
| SSD design: | M.2 |
| SSD max. number: | 1 |
| SSD capacity (GB): | 128 |
| Ethernet connections: | 2 x RJ-45 |
| Ethernet data transfer: | 1 x Gigabit-LAN |
| Ethernet Controller : | Intel I112AT + PHYI219LM |
| WLAN : | Optional / optional |
| operating system: | Optional |
| operating-system language version: | deutsch / english / italian |
| operating-system support: | Windows 10 IoT |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 50°C |
| warranty: | 24 Monate / 24 months |
