W04FA3S-EHT1
Multitouch-Screen, Projected-Capacitive (PCAP)

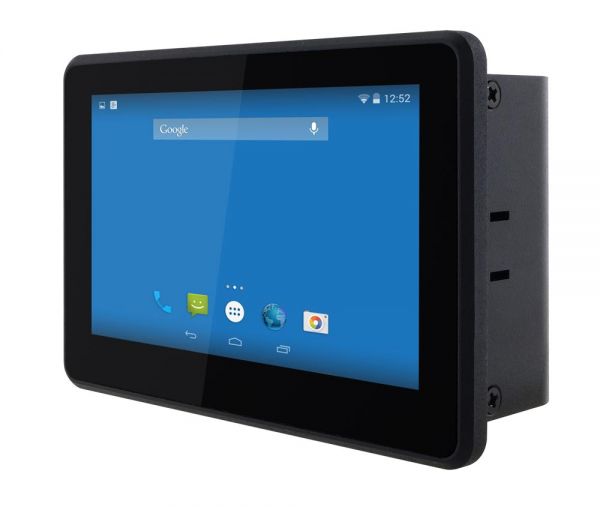

HMI Panel PC with multitouch for professional use Industrial Panel PC in sturdy steel sheet design Robust aluminium front panel (IP65 protected) Flat PCAP glass front without dirt-collecting edges Designed for industrial applications in continuous operation Panelmount installation with rear holding clamps Long-term availability
01-HMI-Panel-PC-Multi-Touch-W04FA3S-ELT1.png / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Numero Ordine:
23040001
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 23040001 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | E-Serie HMI |
| Manufacturer item number: | W04FA3S-ELT1 |
| mechanics: | Panel Mount |
| dimensions width: | 12,1 |
| dimensions height: | 8,2 |
| dimensions depth: | 4,9 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Aluminium / aluminum |
| protection front: | IP65 |
| protection device: | IP20 |
| colour: | RAL 9004 / signal black |
| controls: | 2 Keys: Power, Reset |
| VESA-Mounting Interface: | Nein / no |
| mounting: | Einbau von vorne / front installation |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 4,3 |
| aspect ratio: | 16:9 |
| resolution: | 480 x 272 |
| brightness: | 400 cd/m² |
| contrast: | 1000:1 |
| Display-Technologie: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 12 -24 V/DC |
| input: | 7 Watt |
| USB: | 1 x USB 2.0, 1 x USB OTG |
| serial: | 1 x RS-485 |
| LAN: | 1x RJ45 - 10/100/1000 Mbps (IP65) |
| Mainboard form factor: | i. MX6 |
| chipset: | SoC |
| CPU Typ: | A9 |
| CPU Model: | Cortex A9 |
| CPU speed: | 1,0 GHz |
| CPU cores: | 2 |
| RAM size (MB): | 1024 |
| RAM max. size (MB): | 1024 |
| RAM Number of benches: | 1 |
| RAM Typ: | LPDDR3 |
| CPU class: | ARM Cortex |
| SSD design: | eMMC |
| SSD max. number: | 1 |
| SSD capacity (GB): | 8 |
| Ethernet connections: | 1 x RJ-45 |
| Ethernet data transfer: | 1 x Gigabit-LAN |
| WLAN : | Nein / no |
| Bluetooth : | Nein / no |
| camera: | Nein / no |
| Barcode Scanner: | Nein / no |
| RFID Reader : | Nein / no |
| Betriebssystem: | Android 6.0 |
| operating-system language version: | english |
| operating-system support: | Ubuntu 16.04 |
| operating temperatur min.: | -20°C |
| operating temperatur max.: | 50°C |
| warranty: | 24 Monate / 24 months |
