R15RK3S-PCC3-PoE
Multitouch-Screen, Projected-Capacitive (PCAP)
HMI Panel PC with multitouch for professional use Flat PCAP glass front without dirt-collecting edges Programmable LED signal bar Designed for industrial applications in continuous operation Easy installation with rear VESA mounting interface Long-term availability

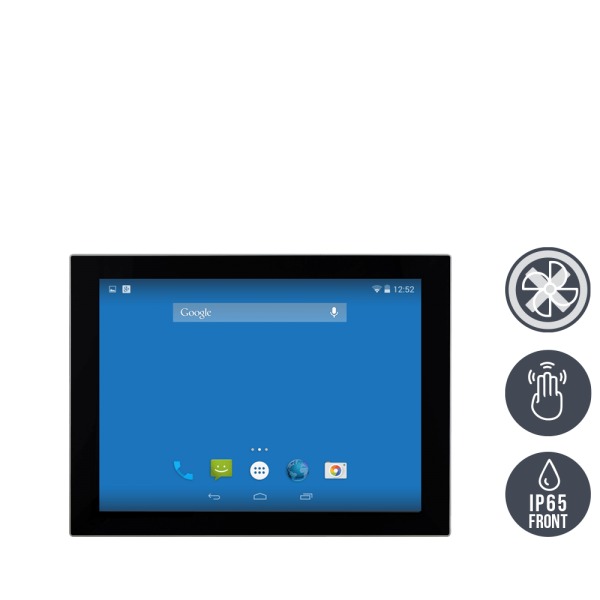

PPC_R15RK3S-PCC3-POE-3.png / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Rear-R15RK3S-PCC3-POE-2 / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Front-right-R15RK3S-PCC3-POE-1 / TL Produkt-Welten / Panel-PC / Panel Mount (Einbau von vorne) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Numero Ordine:
23152287
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 23152287 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | S-Serie HMI |
| Manufacturer item number: | R15RKS3S-PCC3-PoE |
| mechanics: | Panel Mount |
| dimensions width: | 36,34 |
| dimensions height: | 22,79 |
| dimensions depth: | 4,45 |
| Material housing: | Stahlblech / steel sheet |
| Material Front : | Aluminium / aluminum |
| protection front: | IP65 |
| protection device: | IP20 |
| colour: | schwarz / black |
| VESA-Mounting Interface: | VESA 75 x 75 mm |
| mounting: | Einbau von vorne / front installation |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 15,0 |
| aspect ratio: | 16:9 |
| resolution: | 1024 x 768 |
| brightness: | 250 cd/m² |
| contrast: | 500:1 |
| Display-Technologie: | LCD, LED Backlight |
| Touch-Screen or glass: | Projected Capactive / Multi-Touch |
| Touch Interface: | USB |
| Manufacturer controller: | P-CAP Touchcontroller |
| voltage input DC: | 12 V/DC |
| external power supply: | 12 V/DC, 100 - 240 V/AC, DC plug |
| HDMI: | 1 x Micro HDMI |
| USB: | 1 x USB 3.0, 1 x USB 2.0, 1 x USB OTG |
| serial: | 1 x RS-232/422/485 |
| Audio: | 1 x 1 Watt Speaker |
| LAN: | 1x RJ45 - 10/100/1000 Mbps |
| chipset: | SoC |
| CPU Typ: | Cortex |
| CPU Model: | A72 |
| CPU 64bit: | Ja |
| CPU speed: | 2,0 GHz |
| CPU cores: | 2 |
| RAM size (MB): | 2048 |
| RAM max. size (MB): | 4096 |
| RAM Number of benches: | 1 |
| RAM Typ: | LPDDR3L |
| RAM speed: | 1600 |
| Grafik Controller: | Graphics in CPU |
| CPU class: | ARM Cortex |
| CPU alternative option 1: | A53 |
| SSD design: | eMMC |
| SSD max. number: | 1 |
| SSD capacity (GB): | 16 |
| Ethernet connections: | 1 x RJ-45 |
| Ethernet data transfer: | 1 x Gigabit-LAN |
| camera: | Optional 2 Megapixel |
| RFID Reader : | Optional / optional |
| operating system: | Android 7.1 |
| operating-system language version: | deutsch / english / italian |
| operating temperatur min.: | 0°C |
| operating temperatur max.: | 50°C |
| warranty: | 24 Monate / 24 months |
