M101S-BH
Tablet industriali rugged

Tablet-PC für den professionellen Einsatz
Ruggedized Tablet in robustem Aluminium-Gehäuse
Schutzart IP65 rundum inkl. Schnittstellen
Schock-, Vibrations- und Sturz-Resistenz (MIL-STD-810G)
Multi-Touch (PCAP) mit Handschuh-, Regen- und Stylus-Modus
Vielfältige Optionen und Zubehör für Datenerfassung, Kommunikation, Docking, Montage, Stromversorgung, Peripherie und Transport
Der ideale Begleiter in Lager, Logistik, Automotive, Outdoor, Smart Factory, Field Service etc.
Langzeitverfügbarkeit

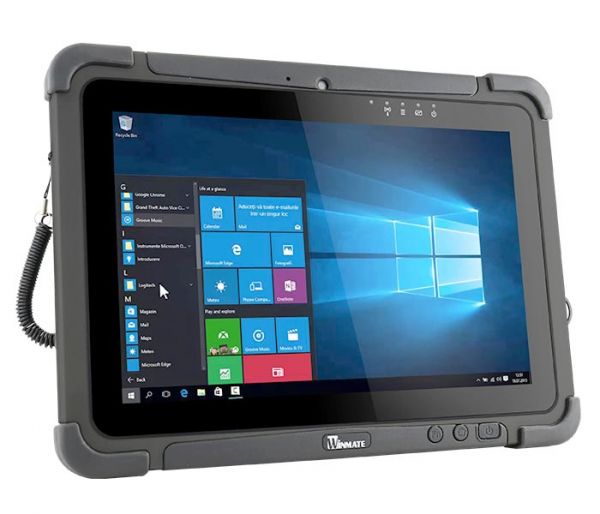

01-Rugged-Industrie-Tablet-M101S
01-Rugged-Industrie-Tablet-M101S
06-Rugged-Industrie-Tablet-Barcode-M101
06-Rugged-Industrie-Tablet-Barcode-M101
12-Rugged-Industrie-Tablet-Vehicle-Dock-M101
12-Rugged-Industrie-Tablet-Vehicle-Dock-M101

Numero Ordine: 25100021
prezzo lordo: € 2.540,40
€ 2.190,00 *

Prezzi più IVA più spese di spedizione

Tempi di consegna: su richiesta

HIGHLIGHTS
  • Widerstandsfähige Alu-Mg-Gehäuse
  • 1D/2D-Barcodescanner
  • Schutz gegen Staub und Wasser bis zu IP65
  • Schock-, Vibrations- und Sturz-Resistenz gemäß MIL-STD-810G
Scarica scheda tecnica in PDF

SPEZIFIKATIONEN
Numero Ordine: 25100021
Manufacturer: WM
Matchcode manufacturer: Ja
Manufacturer: Winmate
series name: Rugged Industrial Tablet PC
Manufacturer item number: M101S
mechanics: Rugged Tablet PC
dimensions width: 27,2
dimensions height: 19,8
dimensions depth: 2,1
weight: 1,3
Material housing: Aluminium - Magnesium
protection device: IP65
colour: Schwarz / black
VESA-Mounting Interface: Optional / optional
cooling: aktiv / fan cooling
Display-diagonal (inch): 10,1
aspect ratio: 16:10
resolution: 1920 x 1080
brightness: 800 cd/m²
contrast: 800:1
Display-Technology: LCD, LED Backlight
Touch-Screen : Projected Capactive / Multi-Touch
usability: Finger/Stift/Handschuh / finger/pen/glov
CPU Typ: Core i5
CPU Model: 7200U
CPU speed: 2,5 GHz
CPU cores: 2
RAM size (MB): 8192
RAM max. Größe (MB: 16384
RAM Typ: SO-DDR4
RAM speed: 2133
SSD design: M.2
SSD capacity: 128
SSD number: 1
SSD number max.: 1
RAID-System: Nein / no
safety: TPM 2.0 und Kensington Lock
WLAN: Ja / yes
WLAN-Standard: IEEE 802.11 a/b/g/n/ac
Bluetooth: Ja / yes
WWAN: Optional / optional
Ethernet data transfer: 1 x Gigabit-LAN
Camera front: Ja / yes
Camera front resolution: 2MP
Camera rear: Ja / yes
Camera rear resolution: 8MP
Barcode: 1D/2D Barcode reader
RFID: Nein / no
Finger Print: Nein / no
Video: 1x Mirco HDMI
USB: 1x USB 3.0 (Type A), 1x USB 3.0 (Type C)
Card Slot: 1x Micro SD Slot
Audio: 1x Audio Combo Conn.(Mic in/Line out)
Power: 1x 12-19 V/DC, DC plug
Docking connector: 1x 19-pin Docking Connector
controls: 6 Keys: Power, Home, 2x Volume, 2x Funct
operating system: Windows 10 IoT Enterprise
operating temperatur min.: -10°C
operating temperatur max.: 50°C
Shock: MIL-STD-810G Method 516.6 Procedure I
Vibration: MIL-STD-810G Method 514.6 Procedure I
Drop: MIL-STD-810G Method 516.6, 4 ft to concr
voltage input DC: 12-19 V/DC
external power supply: 19 V/DC, 100 - 240 V/AC, DC plug
battery: 7.4V, 5900 mAh (typ.) Li-Polymer Batter
battery Hot-Swap: Ja / yes
