FM10
Computer veicolare
Tablet PC ready for vehicle and forklift installation Ruggedized Tablet and docking unit in sturdy magnesium alloy housing Protection class IP65 all around incl. Interfaces Shock and vibration protected (MIL-STD-810G) Antiscratch resistive touch (finger & stylus) SMA connector for external antenna 10-60 V input, wide operating temperature range, mounting accessories etc. Field-replaceable front unit (Tablet) reduces service costs and downtime The ideal partner for warehouse, logistics, automotive, outdoor etc. Long-term availability

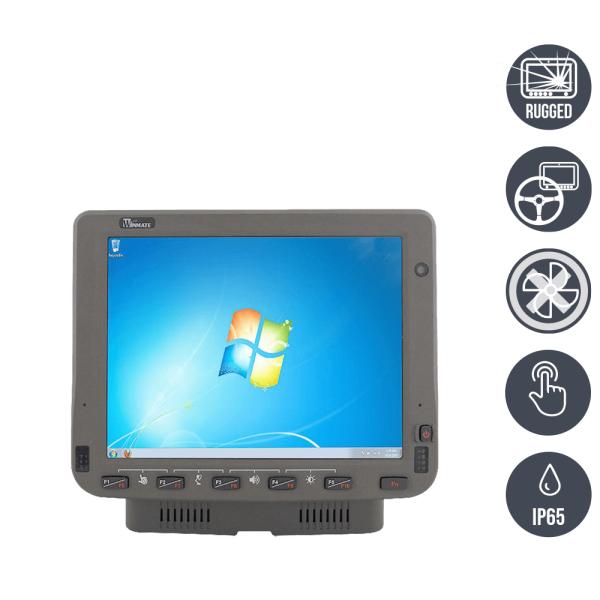

01-Fahrzeug-montierbarer-PC-FM10.png / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
02-Function-Keys-FM10 / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
03-Docking-Station-FM10 / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
04-Docking-Lock-LED-FM10 / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
06-Forklift-FM10 / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
07-mobil-FM10 / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
08-Features-FM10 / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
09-Features2-FM10 / TL Produkt-Welten / Mobile Computing / Vehicle Mount Computer
Numero Ordine:
25100020
prezzo lordo: € 0,00
Prezzo su richiesta
prezzo lordo: € 0,00
Prezzi più IVA più spese di spedizione
Tempi di consegna: su richiesta
SPEZIFIKATIONEN
| Numero Ordine: | 25100020 |
| Manufacturer: | WM |
| Matchcode manufacturer: | nein |
| Manufacturer: | Winmate |
| series name: | Rugged Industrial Tablet PC |
| Manufacturer item number: | FM10 VMC |
| mechanics: | Rugged Tablet PC |
| dimensions width: | 27 |
| dimensions height: | 21,4 |
| dimensions depth: | 3,5 |
| weight: | 1,7 |
| Material housing: | Magnesium Legierung / Magnesium alloy |
| colour: | Schwarz / black |
| VESA-Mounting Interface: | VESA 75 x 75 |
| cooling: | lüfterlos / fanless |
| Display-diagonal (inch): | 10,4 |
| aspect ratio: | 4:3 |
| resolution: | 1024 x 768 |
| brightness: | 400 cd/m² |
| contrast: | 1200:1 |
| Display-Technology: | LCD, LED Backlight |
| Touch-Screen : | Resistive Touch |
| usability: | Finger/Stift / finger/pen |
| CPU Typ: | Atom |
| CPU Model: | E3845 |
| CPU speed: | 1,91 GHz |
| CPU cores: | 4 |
| RAM size (MB): | 4096 |
| RAM max. Größe (MB: | 8192 |
| RAM Typ: | SO-DDR3L |
| RAM speed: | 1600 |
| SSD design: | M.2 |
| SSD capacity: | 128 |
| SSD number: | 1 |
| SSD number max.: | 1 |
| RAID-System: | Nein / no |
| safety: | SOTI MobiControl compatible |
| WLAN: | Ja / yes |
| WLAN-Standard: | IEEE 802.11 a/b/g/n/ac |
| Bluetooth: | Ja / yes |
| WWAN: | Optional / optional |
| Ethernet_connections: | 1x 400 Mbps LAN Port |
| Ethernet data transfer: | 1 x Gigabit-LAN |
| Camera front: | Ja / yes |
| Camera front resolution: | 2MP |
| Camera rear: | Nein / no |
| Barcode: | Nein / no |
| RFID: | Nein / no |
| Finger Print: | Nein / no |
| USB: | 1x USB 3.0 |
| Card Slot: | 1x SD Slot |
| Audio: | Canbus |
| Power: | 1x 10-60 V/DC, DC Plug |
| controls: | 7 Keys: Power, 6x Function |
| operating system: | Windows 10 IoT Enterprise |
| operating system optional: | Windows 7 Professional |
| operating temperatur min.: | -10°C |
| operating temperatur max.: | 50°C |
| Shock: | MIL-STD-810G Method 516.6 Procedure I |
| Vibration: | MIL-STD-810G Method 514.6 Procedure I |
| Drop: | MIL-STD-810G Method 516.6, 4 ft to concrete |
| voltage input DC: | 10 V-60 V |
| battery: | 7.6V, 5800 mAh Li-Polymer Battery (2S1P) |
| battery Hot-Swap: | Nein / no |
Weiterführende Links zu "FM10"
Verfügbare Downloads:
- CE_VMC FM08 FM10 Gebrauchsanleitung 20180114
- Zubehör Accessories FM08 + FM10 - Keyboard Base Plate
- Zubehör Accessories FM08 + FM10 - Keyboard Mounting
- Zubehör Accessories FM08 + FM10 - List
- Zubehör Accessories FM08 + FM10 - RAM Mounting
- CE Konformitätserklärung DoC VMC FM10
- Drawing Vehicle Mounted Computer FM10
