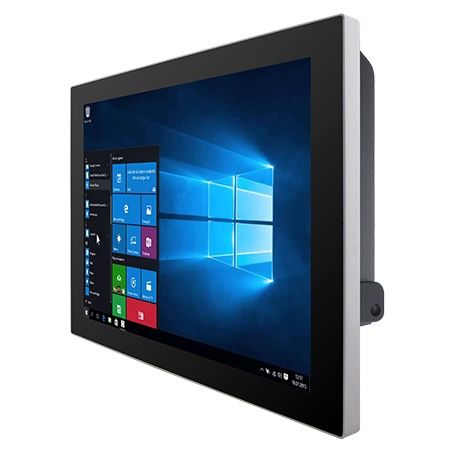

R12IB3S-GCM2(HB)
Multitouch-Screen, Projected-Capacitive (PCAP)

Built-in Panel PC for professional use Industrial Panel PC in sturdy steel sheet design Robust plastic front panel (IP65 protected) Shock and vibration resistant acc. MIL-STD-810F/G Designed for industrial applications in continuous operation Panelmount installation with rear screwed bolts Long-term availability

01-Chassis-Industrie-Panel-PC-R15IB3S-GCC3.png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
01-Chassis-Industrie-Panel-PC-R15IB3S-GCC3.png / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
02-Chassis-Industrie-Panel-PC-R15IB3S-GCC3 / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
02-Chassis-Industrie-Panel-PC-R15IB3S-GCC3 / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)

Numero Ordine: 23152505
prezzo lordo: € 0,00
Prezzo su richiesta

Prezzi più IVA più spese di spedizione

Tempi di consegna: su richiesta

HIGHLIGHTS
  • robustes Stahlblech-Chassis
  • VESA-Montageschnittstelle
  • P-CAP Touch-Screen
  • Langzeitverfügbarkeit
Scarica scheda tecnica in PDF

SPEZIFIKATIONEN
Numero Ordine: 23152505
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: GC-Serie
Manufacturer item number: R15IB3S-GCC3
mechanics: Chassis (VESA-Mounting)
dimensions width: 36,34
dimensions height: 27,78
dimensions depth: 4,45
Material housing: Stahlblech / steel sheet
Material Front : Kunststoff / plastic
protection front: IP65
colour: schwarz / black
controls: 2 Keys: Power, Reset
VESA-Mounting Interface: VESA 100 x 100 mm
mounting: Tragarm-, Standfuß-, Wandmontage / Suppo
cooling: lüfterlos / fanless
Display-diagonal (inch): 15,0
aspect ratio: 4:3
resolution: 1024 x 768
brightness: 300 cd/m²
contrast: 2000:1
Display-Technologie: LCD, LED Backlight
Touch-Screen or glass: Projected Capactive / Multi-Touch
Touch Interface: USB
Manufacturer controller: P-CAP Touchcontroller
voltage input DC: 12 V/DC
external power supply: 12 V/DC, 100 - 240 V/AC, 4-pin
HDMI: 1 x HDMI (optional)
USB: 1 x USB 2.0, 1 x USB 3.0
serial: 1 x RS-232
Audio: 2 x Speaker
LAN: 2x RJ45 - 10/100/1000 Mbps
CPU Typ: Celeron
CPU Model: N2930
CPU 64bit: Ja
CPU speed: 1,83 GHz
CPU cores: 4
CPU socket: FCBGA1170
RAM size (MB): 4096
RAM Number of benches: 1
RAM Typ: SO-DDR3L
RAM speed: 1600
Grafik Controller: Intel HD Graphics Z3700 series
CPU class: Atom / Celeron
SSD design: mSATA
SSD max. number: 1
SSD capacity (GB): 128
Ethernet connections: 2 x RJ-45
Ethernet data transfer: 2 x Gigabit-LAN
Ethernet Controller : 2 x Intel Gigabit Ethernet Controller
WLAN : Optional / optional
Bluetooth : optional / optional
Betriebssystem: Optional
operating-system language version: deutsch / english / italian
operating temperatur min.: 0°C
operating temperatur max.: 50°C
warranty: 24 Monate / 24 months
