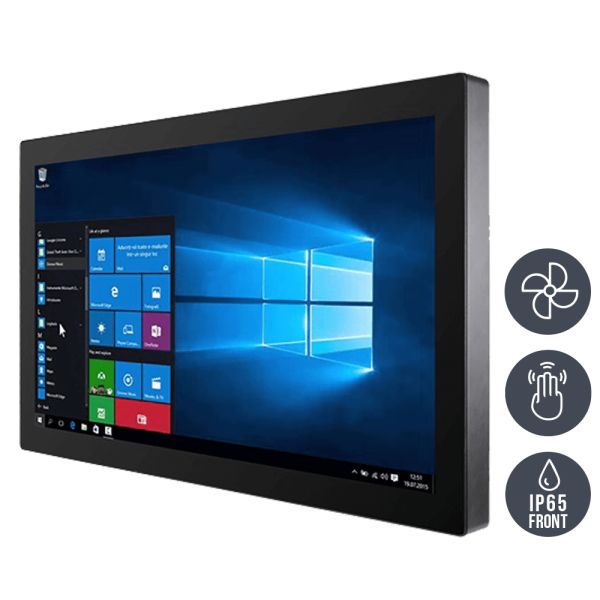

WM 43W-IK70-CH - i5
Automazione Industriale, Panel-PC

Multitouch-Panel-PC  für den professionellen Einsatz
Panel-Industrie-PC in robustem Stahlblech-Gehäuse
Ebene PCAP-Glasfront ohne Schmutzkanten
Ausgelegt für industrielle Anwendungen im Dauerbetrieb
Einfache Installation mit rückseitiger VESA-Montageschnittstelle

01-W43IK7T-PCA3 / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
01-W43IK7T-PCA3 / TL Produkt-Welten / Panel-PC / Chassis (VESA-Mounting) / Multitouch-Screen, projiziert-kapazitiv (PCAP)
Numero Ordine: 23420059
prezzo lordo: € 4.569,60
€ 3.840,00 *

Prezzi più IVA più spese di spedizione

Pronto per la spedizione di oggi,
tempo di consegna ca. 1-3 giorni lavorativi

HIGHLIGHTS
  • IP65 Front
  • VESA-Montageschnittstelle
  • P-CAPTouch-Screen
Scarica scheda tecnica in PDF

SPEZIFIKATIONEN
Numero Ordine: 23420059
Manufacturer: WM
Matchcode manufacturer: nein
Manufacturer: Winmate
series name: MTU-Serie
Manufacturer item number: W43IK7T-PCA3
mechanics: Chassis (VESA-Mounting)
dimensions width: 102,88
dimensions height: 61,7
dimensions depth: 6,43
weight: 25,0
Material housing: Stahlblech / steel sheet
protection front: IP65
colour: schwarz / black
controls: 2 Keys: Power, Reset
VESA-Mounting Interface: VESA 200 x 200 mm, 400 x 400 mm
mounting: Tragarm-, Standfuß-, Wandmontage / Suppo
cooling: aktiv / fan cooling
Display-diagonal (inch): 43,0
resolution: 1920 x 1080
brightness: 400 cd/m²
contrast: 3000:1
Display-Technologie: LCD, LED Backlight
Touch-Screen or glass: Projected Capactive / Multi-Touch
Touch Interface: USB
Manufacturer controller: P-CAP Touchcontroller
voltage input DC: 24 V/DC
DisplayPort: 1 x DisplayPort
USB: 4 x USB 3.0 (Type-A)
serial: 1 x RS-232
Audio: 1 x Mic-In, 1 x Line-Out, 2 x Speaker
LAN: 2x RJ45 - 10/100/1000 Mbps
chipset: Intel H170
CPU Typ: Core i5
CPU Model: 7500T
CPU 64bit: Ja
CPU speed: 2,70 GHz
CPU cores: 4
CPU socket: FCLGA1151
RAM size (MB): 8192
RAM Typ: SO-DDR4
RAM speed: 2400
Grafik Controller: Intel HD Graphics 630
SSD design: M.2
SSD max. number: 1
SSD capacity (GB): 256
Ethernet connections: 2 x RJ-45
Ethernet data transfer: 2 x Gigabit-LAN
Ethernet Controller : Intel I211-AT + I219-LM
operating temperatur min.: 0°C
operating temperatur max.: 50°C
warranty: 24 Monate / 24 months
Weiterführende Links zu "WM 43W-IK70-CH - i5"
Verfügbare Downloads:

* Alle Preise inkl. gesetzl. Mehrwertsteuer zzgl. Versandkosten und ggf. Nachnahmegebühren, wenn nicht anders beschrieben
