CL4501 - Q370
7 Slots (ATX Mainboard), PC industriale

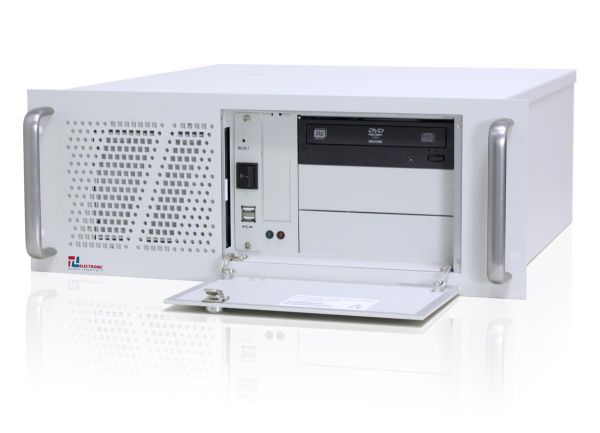

19-Zoll Industrie-PC für den professionellen Einsatz
Industriecomputer in robustem Stahlblech-Gehäuse
Aluminium-Front mit abschließbarer Tür
Mainboard-Ausführung (ATX)
7 x Erweiterungssteckplatz
2 x 80 mm Front-Lüfter mit wechselbarer Filtermatte
Sichere Fixierung aller Kabel und beweglichen Teile
Konfiguration und Schnittstellen nach Wunsch
Ausgelegt für industrielle Anwendungen im Dauerbetrieb
Einbaufertig für das 19-Zoll-Rack
Made in Germany
Langzeitverfügbarkeit

01-19-Zoll-Rack-Industrie-PC-CL450x / TL Produkt-Welten / Industrie-PC / 19-Zoll Rack Mount / 7 Slots (ATX Mainboard)
01-19-Zoll-Rack-Industrie-PC-CL450x / TL Produkt-Welten / Industrie-PC / 19-Zoll Rack Mount / 7 Slots (ATX Mainboard)
02-19-Zoll-Rack-Industriecomputer-Front-CL450x / TL Produkt-Welten / Industrie-PC / 19-Zoll Rack Mount / 7 Slots (ATX Mainboard)
02-19-Zoll-Rack-Industriecomputer-Front-CL450x / TL Produkt-Welten / Industrie-PC / 19-Zoll Rack Mount / 7 Slots (ATX Mainboard)
03-19-Zoll-Rack-Industriecomputer-Front2-CL450x / TL Produkt-Welten / Industrie-PC / 19-Zoll Rack Mount / 7 Slots (ATX Mainboard)
03-19-Zoll-Rack-Industriecomputer-Front2-CL450x / TL Produkt-Welten / Industrie-PC / 19-Zoll Rack Mount / 7 Slots (ATX Mainboard)
05-Industriecomputer-CL450x-Filter / TL Produkt-Welten / Industrie-PC / 19-Zoll Rack Mount / 7 Slots (ATX Mainboard)
05-Industriecomputer-CL450x-Filter / TL Produkt-Welten / Industrie-PC / 19-Zoll Rack Mount / 7 Slots (ATX Mainboard)
Numero Ordine: 11402212
prezzo lordo: € 1.600,55
€ 1.345,00 *

Prezzi più IVA più spese di spedizione

Tempi di consegna: su richiesta

HIGHLIGHTS
  • 4HE Rack-mount
  • bis zu 7 Erweiterungs-Steckplätze
  • Langzeitverfügbarkeit
Scarica scheda tecnica in PDF

SPEZIFIKATIONEN
Numero Ordine: 11402212
Manufacturer: TL
Matchcode manufacturer: nein
Manufacturer: TL Electronic
series name: ClassicLine
mechanics: 19" Rack Mount
dimensions width: 48,3
dimensions height: 17,7
dimensions depth: 45,2
weight: 15
Material housing: Aluminium und Stahlblech / aluminium and
Material Front : Aluminium / aluminum
colour: RAL 7035 / light grey
controls: 2 Keys: Power, Reset, Status-LEDs
cooling: aktiv / fan cooling
Mainboard form factor: ATX
chipset: Intel Q370
CPU Typ : Core i5
CPU Model : 9500
CPU 64bit : Ja
CPU speed: 3,0GHz
CPU cores: 6
CPU socket: FCLGA1151
RAM size (MB): 8192
RAM Number of benches: 4
RAM Typ : DDR4
PCI Express x16 : 1
PCI Express x4 : 3
PCI Express x1 : 1
PCI : 2
Grafik Controller: Intel HD Graphics 630
Ethernet Controller: Intel PHY 219 LM + Intel LAN 211 AT
connections SATA: 6
USB internal connections: 4x USB 2.0, 2x USB 3.0
Connections Serial internal: 4x RS-232
Mini-PCIe-slot: 1
SSD design: 2.5"
SSD max. number: 1
SSD capacity (GB): 256
CD/DVD-Writer : Ja / yes
Display : 2x DisplayPort, 1x VGA
USB : 4 x USB 3.1, 2 x USB 2.0
LAN : 2x RJ45 - 10/100/1000 Mbps
Audio : Line-Out, Line-In, Mic in
serial: 1 x RS-232, 1 x RS232/422/485
PS/2: 1x Mini-DIN
voltage input AC: 100 - 240 V/AC
power adapter: 400 Watt ATX, PS/2, intern
operating-system support: Optional / optional
operating temperatur min.: 0°C
operating temperatur min.: 50°C
warranty: 24 Monate / 24 months
